Same model may have multiple batches, images only for reference.

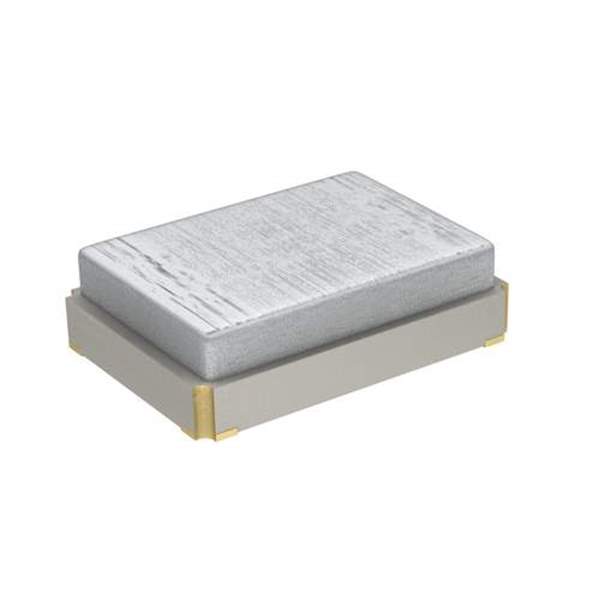

XRCGB24M000F1H00R0 Real Image
Same model may have multiple batches, images only for reference.

XRCGB24M000F1H00R0

Part No XRCGB24M000F1H00R0
Manufacturer Murata Electronics North America
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 6PF SMD / 24 MHz ±10ppm Crystal 6pF 80 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Murata Electronics
Series XRCGB
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number XRCGB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names 490-16116-6,490-16116-1,490-16116-2
Standard Package 3,000
Win Source Part Number 964155-XRCGB24M000F1H00R0
Ultra Librarian 3D Model Ultra Librarian XRCGB24M000F1H00R0 CAD Model

Description

The XRCGB24M000F1H00R0 is a MHz crystal that belongs to the Crystals, Oscillators, Resonators>Crystals category.

  • Frequency: 24 MHz
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 6pF
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Mode: Fundamental
  • Standard Package: 3,000
  • Manufacturer: Murata Electronics
  • Win Source Part Number: 964155-XRCGB24M000F1H00R0
  • Height Seated: 0.028" (0.70mm)
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Packaging: Tape & Reel
  • Mounting: SMD (SMT)
  • HTSUS: 8541.60.0060
  • ECCN: EAR99
