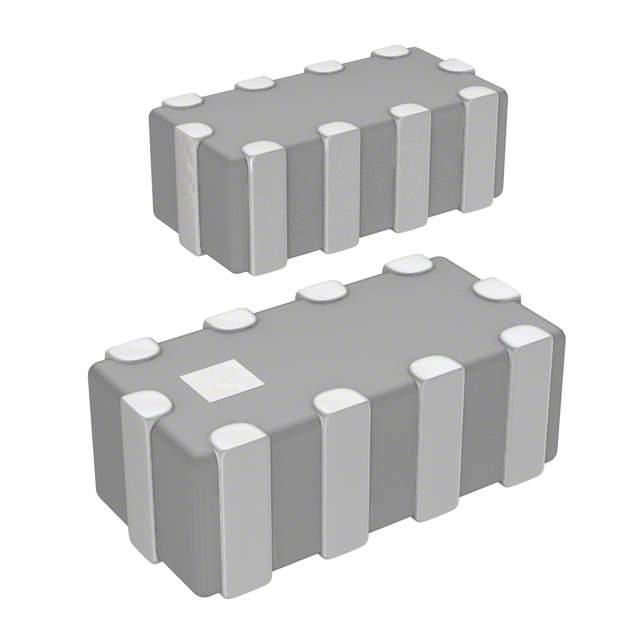

NFA18SL506X1A45L Real Image
Same model may have multiple batches, images only for reference.

NFA18SL506X1A45L

Part No NFA18SL506X1A45L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 50MHZ SMD
Datasheet
NFA18SL506X1A45L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 16 Weeks
Features LC EMI Filter 2nd Order Low Pass Channel - 25 0603 (1608 Metric), Array, 10 PC Pad
Manufacturer Murata Electronics North America
Series EMIFIL®, NFA18
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 0603 (1608 Metric), Array, 10 PC Pad
Family Name NFA18SL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 490-7792-6, 490-7792-2, 490-7792-1
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929104-NFA18SL506X1A45L
Ultra Librarian 3D Model Ultra Librarian NFA18SL506X1A45L CAD Model

Description

The Murata Electronics North America NFA18SL506X1A45L is an LC EMI filter EMIFIL® 2nd order low pass channel with a surface mount mounting style from Murata Electronics North America.

  • Filter Type: LC EMI Filter
  • Filter Order: 2nd Order Low Pass
  • Mounting Style: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Package: 0603 (1608 Metric)
  • Pad Count: 10 PC pads
  • Series: NFA18SL
  • Packaging: Reel-TR
  • Popularity: High
  • Supply and Demand Status: Balanced
  • Quantity Per Package: 4000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 16 weeks
  • HTSUS Code: 8548.90.0100
