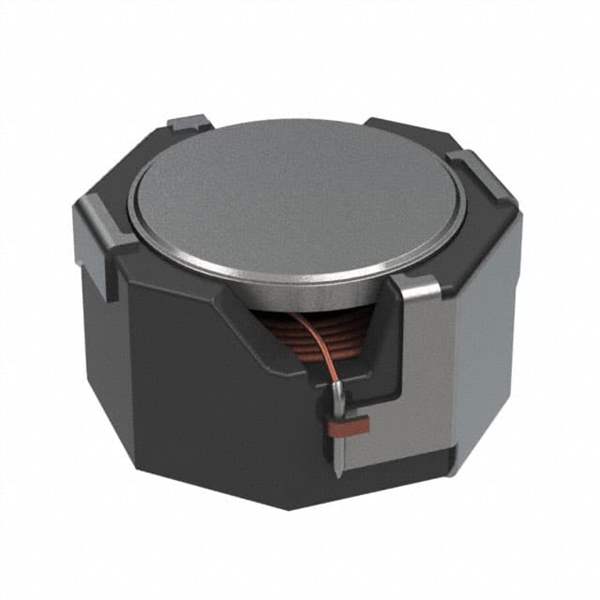

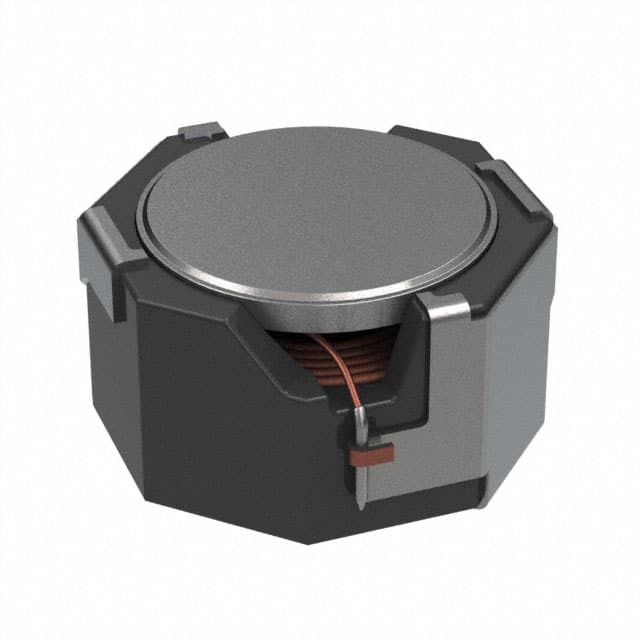

Same model may have multiple batches, images only for reference.

MDH12577C-4R7NA=P3

Name: MDH12577C-4R7NA=P3
Brand: Murata Electronics North America
SKU: 1118737
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	MDH12577C-4R7NA=P3
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 5.4A 9 MOHM SMD / 4.7 µH Unshielded Drum Core, Wirewound Inductor 5.4 A 9mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Murata Electronics
Series	MDH12577C
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±30%
Current Rating (Amps)	5.4 A
Current - Saturation (Isat)	11A
Shielding	Unshielded
DC Resistance (DCR)	9mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.504" L x 0.492" W (12.80mm x 12.50mm)
Height - Seated (Max)	0.315" (8.00mm)
Base Product Number	MDH12577C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	490-17634-2,490-17634-1,490-17634-6
Standard Package	300
Win Source Part Number	1118737-MDH12577C-4R7NA=P3
Ultra Librarian 3D Model	Ultra Librarian MDH12577C-4R7NA=P3 CAD Model

Alternative Products

Description

The MDH12577C-4R7NA=P3 is a drum core, wirewound inductor from Murata Electronics.

Design: Unshielded
Inductance: 4.7µH
Tolerance: ±30%
DC Resistance: 9mOhm
Current Rating: 5.4A
Temperature Range: -55°C to 150°C
AEC-Q200 Rated: Yes
Core Material: Ferrite
Package: Non-Standard
Dimension: 0.504" L x 0.492" W (12.80mm x 12.50mm)
Mounting: SMD (SMT)
Application: Automotive
