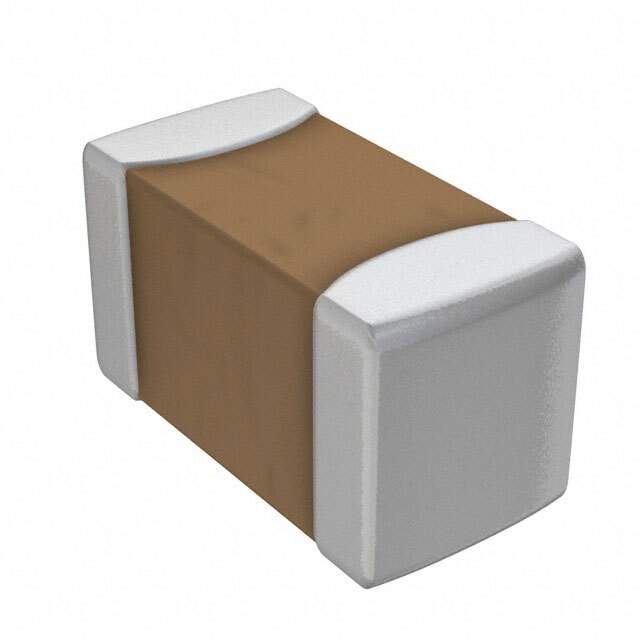

LXES15AAA1-117 Real Image
Same model may have multiple batches, images only for reference.

LXES15AAA1-117

Part No LXES15AAA1-117
Manufacturer Murata Electronics North America
Catalog TVS - Diodes
Description TVS DIODE 15VWM 0402
Datasheet
LXES15AAA1-117 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 15V
Applications General Purpose
Capacitance @ Frequency 0.05pF @ 1MHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 1005
Win Source Part Number 099474-LXES15AAA1-117
Ultra Librarian 3D Model Ultra Librarian LXES15AAA1-117 CAD Model

Description

The LXES15AAA1-117 is a zener manufactured by Murata Electronics North America.

  • Packaging: Reel
  • Category: Circuit Protection
  • Standoff Voltage (Vwm): 15V
  • Capacitance: 0.05pF @ 1MHz
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Case/Package: 1005
