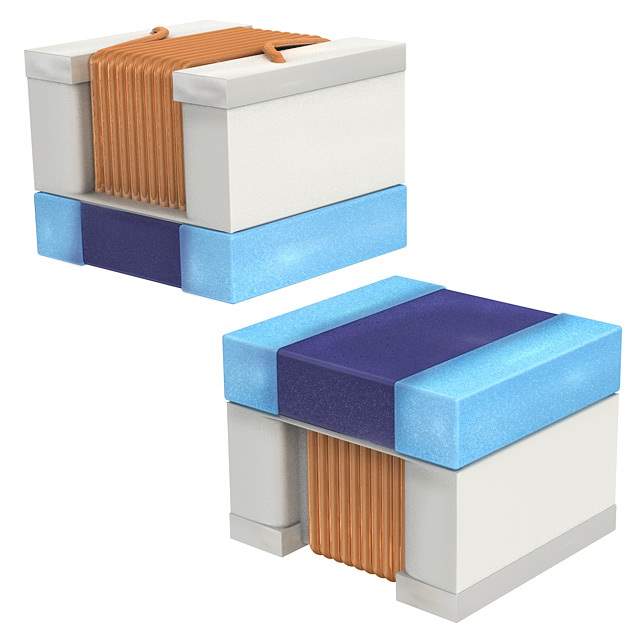

The LQW2BAS68NJ00L is a high-frequency inductor manufactured by Murata Electronics North America. This inductor is designed for use in a wide range of electronic circuits, particularly those operating at high frequencies where inductance plays a crucial role. It's a component known for its compact size and reliable performance.

Applications

• RF circuits
• Mobile communication devices
• Wireless LAN (WLAN) applications
• Bluetooth modules
• High-frequency impedance matching
• Resonant circuits

Features

• Small size: Designed for compact electronic devices.
• High self-resonant frequency: Ensures optimal performance at high frequencies.
• Tight inductance tolerance: Provides consistent and predictable performance.
• Excellent Q-factor: Indicates low energy loss, contributing to efficient circuit operation.
• Surface mount design: Facilitates easy and automated assembly on printed circuit boards (PCBs).
• RoHS compliant: Ensures environmental friendliness by complying with Restriction of Hazardous Substances directives.

Benefits

• Improved circuit performance: The high Q-factor and tight tolerance contribute to stable and reliable circuit operation.
• Miniaturization: The small size allows for the design of compact and portable electronic devices.
• Simplified assembly: The surface mount design reduces assembly time and costs.
• Reduced energy loss: The high Q-factor minimizes energy dissipation, improving overall efficiency.
• Environmentally friendly: RoHS compliance ensures that the component is free from harmful substances.

Additional Details

The LQW2BAS68NJ00L has an inductance value of 68nH. Its self-resonant frequency is designed to be very high, allowing it to function effectively in high-frequency applications. It is constructed using ceramic materials and features a multilayer structure for enhanced performance. The operating temperature range typically spans from -55°C to +125°C. The inductor's physical dimensions are carefully designed to ensure compatibility with standard surface mount technology (SMT) assembly processes.

This inductor is commonly used in impedance matching networks, filters, and resonant circuits where a precise and stable inductance value is required. Its robust construction and reliable performance make it suitable for a wide range of demanding applications in the telecommunications, consumer electronics, and industrial sectors.
