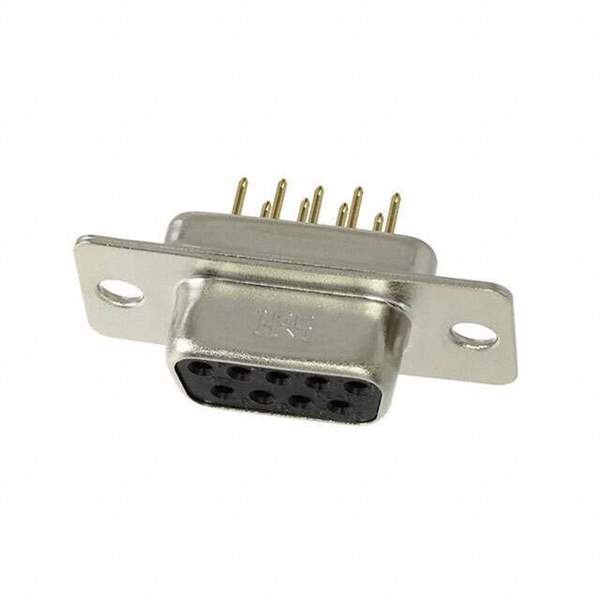

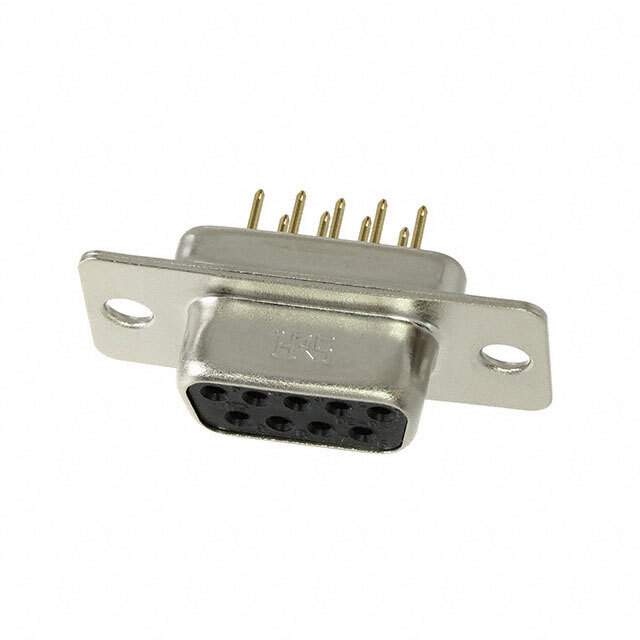

SDEB-9S(55) Real Image
Same model may have multiple batches, images only for reference.

SDEB-9S(55)

Part No SDEB-9S(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDEB
Other Names H122929,*SDEB-9S(55),211-0248-6-55,*SDEB-9S(55),-SDEB-9S(55)
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294111-SDEB-9S(55)
Ultra Librarian 3D Model Ultra Librarian SDEB-9S(55) CAD Model

Description

The SD series of connectors from Hirose Electric Co Ltd is designed for use in D-sub connectors.

  • Series: SD
  • Type: Receptacle
  • Positions: 9
  • Color: Black
  • Connector Type: Receptacle
  • Contact Type: Signal
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Tray
  • Connector Style: D-sub
  • Voltage Rating: 350V
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 60
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Material and Finish: Steel and Nickel Plated
  • Mounting Type: Panel Mount, Through Hole
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
