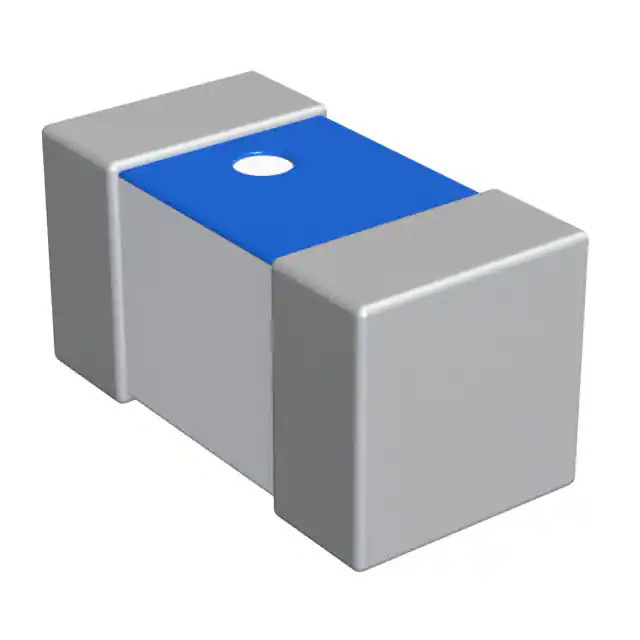

LQP03TG20NJ02D

Name: LQP03TG20NJ02D
Brand: Murata Electronics North America
SKU: 1369774
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQP03TG20NJ02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 20NH 140MA 2.57OHM SMD
Datasheet	LQP03TG20NJ02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics
Series	LQP03
Package	Tape & Reel
Product Status	Active
Type	Thick Film
Material - Core	Non-Magnetic
Inductance	20 nH
Tolerance	±5%
Current Rating (Amps)	140 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	2.57Ohm Max
Q @ Freq	90 @ 500MHz
Frequency - Self Resonant	2.6GHz
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	500 MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.013" (0.33mm)
Base Product Number	LQP03TG
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1369774-LQP03TG20NJ02D
Ultra Librarian 3D Model	Ultra Librarian LQP03TG20NJ02D CAD Model

Alternative Products

Description

The LQP03TG20NJ02D is a thick film inductor from Murata Electronics.

Series: LQP03
Mounting Type: Surface Mount
Size / Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max): 0.013" (0.33mm)
Inductance: 20 nH
Current Rating: 140 mA
Tolerance: ±5%
DC Resistance (DCR): 2.57 Ohm Max
Q @ Freq: 90 @ 500MHz
Frequency - Self Resonant: 2.6GHz
Shielding: Unshielded
Core Material: Non-Magnetic
Operating Temperature: -55°C to 125°C
REACH Status: Unaffected
