Same model may have multiple batches, images only for reference.

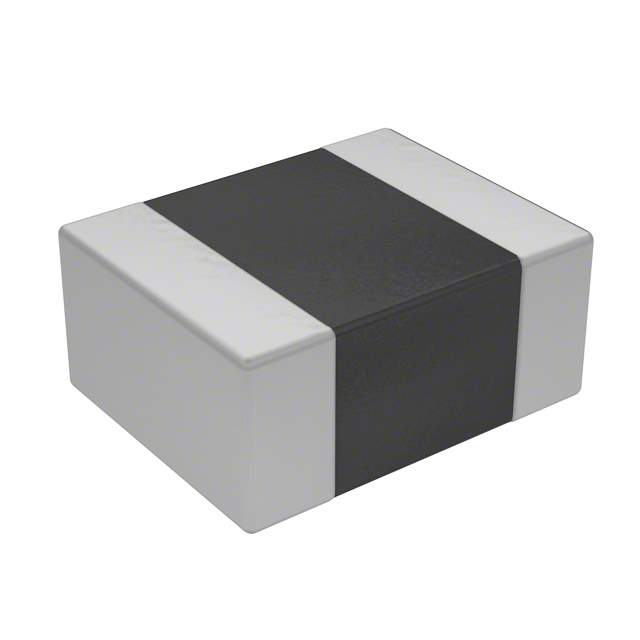

LQM2MPNR33MGHL Real Image
Same model may have multiple batches, images only for reference.

LQM2MPNR33MGHL

Part No LQM2MPNR33MGHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 330NH 3.1A 30 MOHM SMD / 330 nH Shielded Multilayer Inductor 3.1 A 30mOhm Max 0806 (2016 Metric)
Datasheet
LQM2MPNR33MGHL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Type Multilayer
Material - Core Ferrite
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 3.7A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Frequency - Self Resonant 90MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQM2MPN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 3,000
Win Source Part Number 1327945-LQM2MPNR33MGHL
Ultra Librarian 3D Model Ultra Librarian LQM2MPNR33MGHL CAD Model

Description

The Murata Electronics fixed inductor is a multilayer, shielded type with an inductance of 330 nH and a tolerance of ±20%.

  • DC Resistance: 30 mOhm Max
  • Saturation Current: 3.7 A
  • Packaging: Reel with 3,000 pieces
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 85°C
