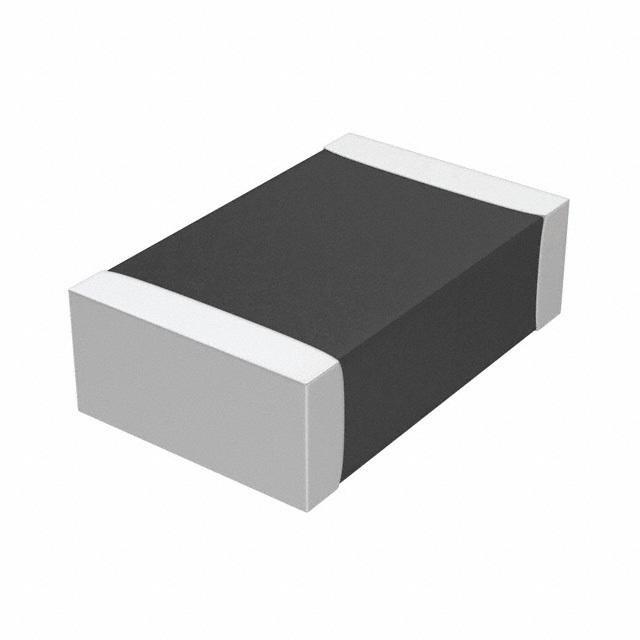

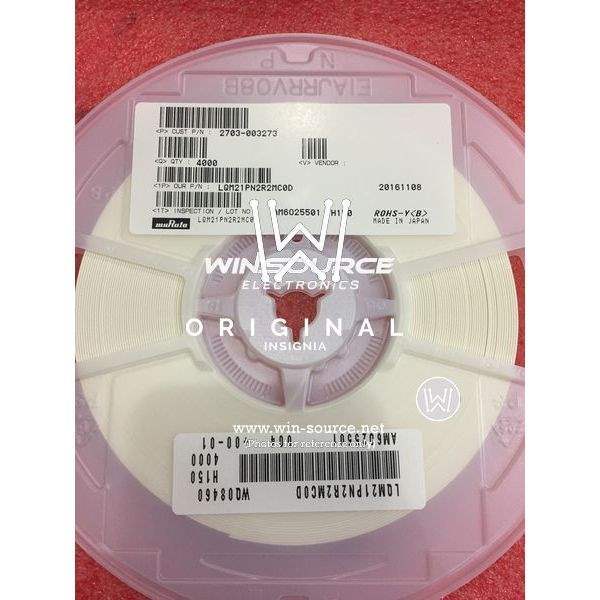

LQM21PN2R2MC0D Murata Electronics North America LQM21PN2R2MC0D Real Image LQM21PN2R2MC0D label picture 2
Same model may have multiple batches, images only for reference.
LQM21PN2R2MC0D Murata Electronics North America LQM21PN2R2MC0D Real Image LQM21PN2R2MC0D label picture 2
LQM21PN2R2MC0D Murata Electronics North America LQM21PN2R2MC0D Real Image LQM21PN2R2MC0D label picture 2
Same model may have multiple batches, images only for reference.

LQM21PN2R2MC0D

Part No LQM21PN2R2MC0D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Shielded Multi-Layer 2.2uH 20% 1MHz Ferrite 0.6A 0.425Ohm DCR 0805 T/R / FIXED IND 2.2UH 600MA 340 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 600mA
DC Resistance (DCR) 425 mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.022" (0.55mm)
Win Source Part Number 020025-LQM21PN2R2MC0D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name LQM21PN_C0
Introduction Date August 21, 2007
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQM21PN2R2MC0D CAD Model

Description

The LQM21PN2R2MC0D is a multilayer inductor manufactured by Murata Electronics North America.

  • Inductance: 2.2u00B5H
  • Current Rating: 600mA
  • Supply and Demand Status: Sufficient
  • Material: Ferrite Core
    • Frequency Self-Resonant: 50MHz
  • Frequency Test: 1MHz
  • DC Resistance (DCR): 425 mOhm Max
  • Tolerance: u00B120%
  • Temperature Range: -55u00B0C to 125u00B0C
  • Package Size: 0805 (2012 Metric)

This inductor is a reliable choice for electronic applications.
