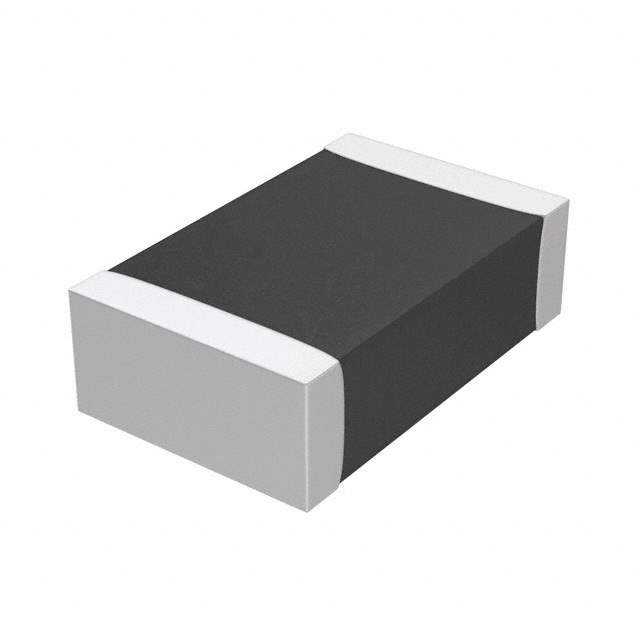

LQM21PH2R2MGCD Real Image
Same model may have multiple batches, images only for reference.

LQM21PH2R2MGCD

Part No LQM21PH2R2MGCD
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND / 2.2 µH Shielded Multilayer Inductor 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series LQM21
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Shielding Shielded
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQM21PH
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1345680-LQM21PH2R2MGCD
Ultra Librarian 3D Model Ultra Librarian LQM21PH2R2MGCD CAD Model

Description

The LQM21PH2R2MGCD is a fixed inductor that is designed for use in various applications and manufactured by Murata Electronics.

  • Design: Multilayer
  • Shielded: Yes
  • Inductance: 2.2 μH
  • Package: Tape and reel
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Supply and Demand Status: Balanced
