Same model may have multiple batches, images only for reference.

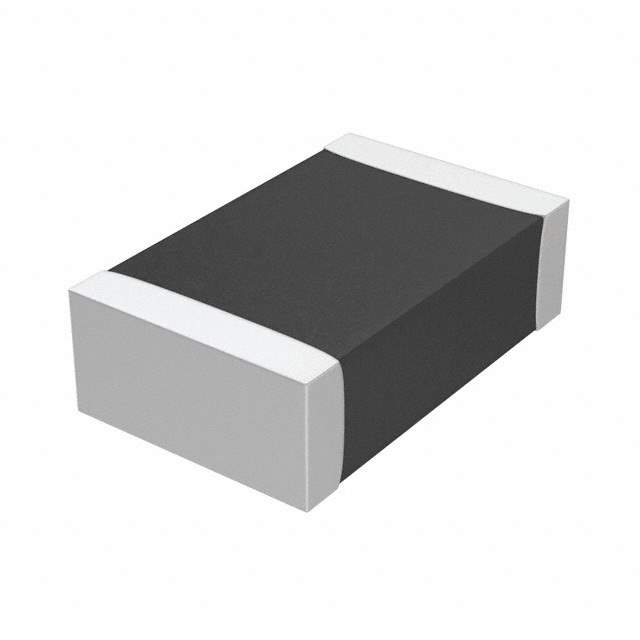

LQM21FN4R7M80L Real Image
Same model may have multiple batches, images only for reference.

LQM21FN4R7M80L

Part No LQM21FN4R7M80L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Chip Inductor (Chip Coil) Power Inductor (Multilayer Type for Choke)
Datasheet
LQM21FN4R7M80L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQM21
Packaging Reel - TR
Type Multilayer
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 120mA
Current - Saturation 120mA
Shielding Shielded
DC Resistance (DCR) 234 mOhm Max
Frequency - Self Resonant 25MHz
Operating Temperature Range -55°C ~ 125°C
Test Frequency 1MHz
Mounting SMD
Package 0805
Manufacturer Package 0805
Size 0.079" L x 0.050" W (2.00mm x 1.25mm)
Height - Seated (Maximum) 0.041" (1.05mm)
Win Source Part Number 1204406-LQM21FN4R7M80L
Manufacturer Homepage www.murata.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LQM21FN4R7M80L CAD Model

Description

The LQM21FN4R7M80L is a multilayer shielded inductor from Murata with an inductance of 4.7μH and a current rating of 120mA.

  • Inductance: 4.7μH
  • Current Rating: 120mA
  • Tolerance: ±20%
  • Operating Temperature Range: -55°C to 125°C
  • Mounting: Surface (SMD technology)
  • Size: 0.079" L x 0.050" W (2.00mm x 1.25mm)
  • DC Resistance (DCR): 234 mOhm Max
  • Series: LQM21
  • Package: 0805
  • Core Material: Ferrite
  • Alternative Parts: CKS21254R7M-T, ASMCI-0805-4R7N-T, and LBR2012T4R7M
  • Popularity: High
