Same model may have multiple batches, images only for reference.

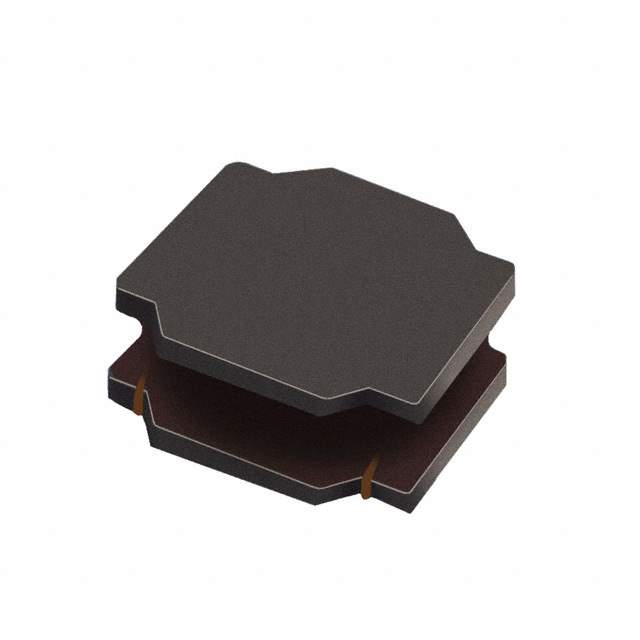

LQH88PN680M38L Real Image
Same model may have multiple batches, images only for reference.

LQH88PN680M38L

Part No LQH88PN680M38L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 68UH 1.1A 190 MOHM SMD
Datasheet
LQH88PN680M38L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 68μH
Tolerance ±20%
Current Rating 1.1A
Current - Saturation 1.25A
DC Resistance (DCR) 190 mOhm
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Case / Package 3131 (8080 Metric)
Height - Seated (Max) 0.150" (3.80mm)
Win Source Part Number 134942-LQH88PN680M38L
Ultra Librarian 3D Model Ultra Librarian LQH88PN680M38L CAD Model

Description

The Murata Electronics LQH88PN680M38L is a wirewound inductor with a 68μH inductance and a tolerance of ±20%.

  • Mounting Type: SMD (SMT)
  • Package/Casing: 3131 (8080 Metric)
  • Height: 0.150" (3.80mm)
  • Maximum Current Rating: 1.1A
  • DC Resistance (DCR): 190 mOhm
  • Self-Resonant Frequency: 7MHz
  • Test Frequency: 100kHz
  • Material: Non-magnetic material
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete (EOL)
