Same model may have multiple batches, images only for reference.

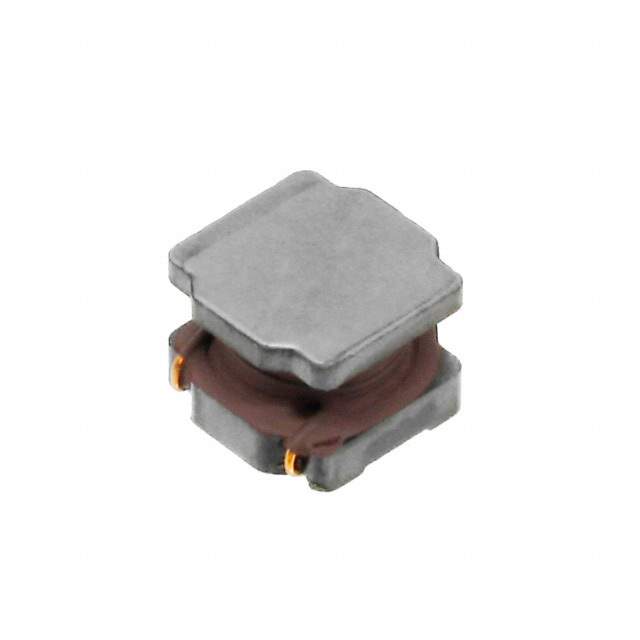

LQH6PPN220M43L Real Image
Same model may have multiple batches, images only for reference.

LQH6PPN220M43L

Part No LQH6PPN220M43L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 1.55A 108 MOHM
Datasheet
LQH6PPN220M43L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 1.55A
Current - Saturation 1.7A
DC Resistance (DCR) 108 mOhm
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 133278-LQH6PPN220M43L
Ultra Librarian 3D Model Ultra Librarian LQH6PPN220M43L CAD Model

Description

The Murata Electronics North America 133278-LQH6PPN220M43L wirewound inductor has a current rating of 1.55A and an inductance of 22u00B5H.

  • Height: 0.177" (4.50mm)
  • Mounting Type: SMD (SMT)
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 108 mu03A9
  • Tolerance: u00B120%
  • Saturation Current: 1.7A
  • Self-Resonant Frequency: 10MHz
  • Test Frequency: 100kHz
  • Status: Obsolete (EOL)
  • Popularity: Low
  • Supply and Demand: Unknown
  • Temperature Range: -40u00B0C to 85u00B0C
