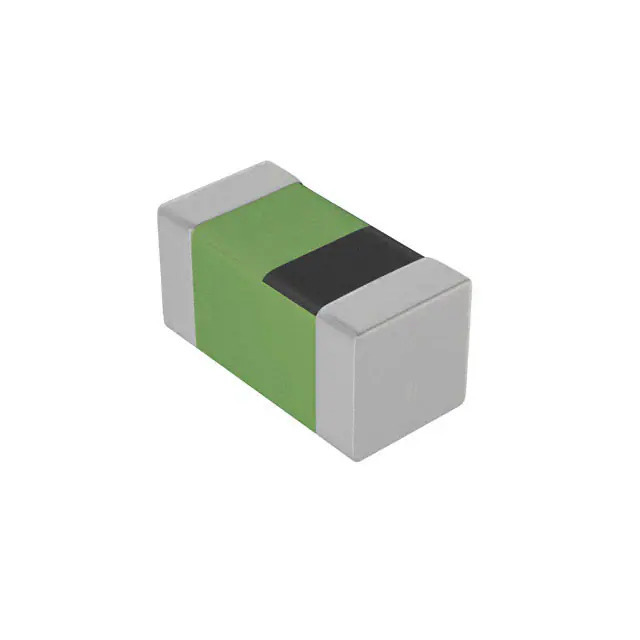

LQG15HH47NH02D

Name: LQG15HH47NH02D
Brand: Murata Electronics North America
SKU: 1369717
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQG15HH47NH02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 47NH 300MA 720MOHM SMD
Datasheet	LQG15HH47NH02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Murata Electronics
Series	LQG15
Package	Tape & Reel
Product Status	Active
Type	Multilayer
Material - Core	Air
Inductance	47 nH
Tolerance	±3%
Current Rating (Amps)	300 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	720mOhm Max
Frequency - Self Resonant	1GHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.022" (0.55mm)
Base Product Number	LQG15HH
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369717-LQG15HH47NH02D
Ultra Librarian 3D Model	Ultra Librarian LQG15HH47NH02D CAD Model

Alternative Products

Description

The LQG15HH47NH02D is a fixed inductor from Murata Electronics.

Series: LQG15 series
Package Size: 0402 (1005 Metric)
Mounting Type: Surface Mount
Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Seated Height: 0.022" (0.55mm)
Inductance: 47nH
Current Rating: 300mA
Type: Multilayer
Tolerance: ±3%
DC Resistance: 720mOhm max
Self-Resonant Frequency: 1GHz
Inductance Test Frequency: 100MHz
Shielding: Unshielded
Core Type: Air Core
Operating Temperature: -55°C to 125°C
REACH: Unaffected
