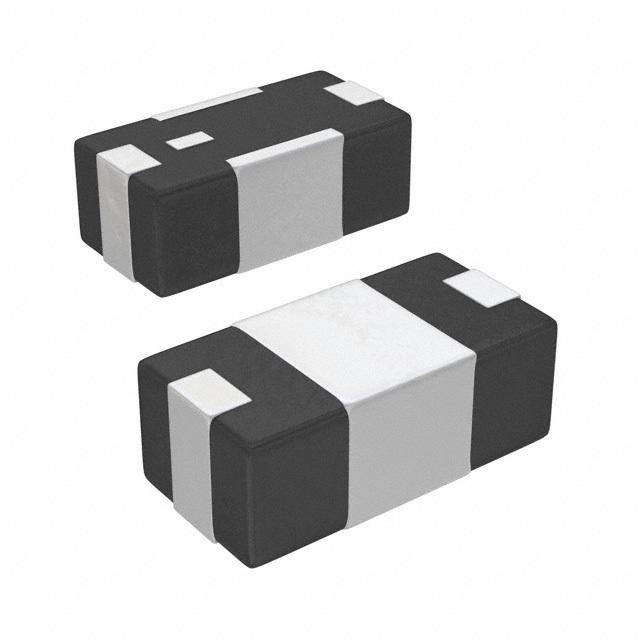

Same model may have multiple batches, images only for reference.
LFD18859MDP1A102 Murata Electronics North America
Same model may have multiple batches, images only for reference.

LFD18859MDP1A102

Part No LFD18859MDP1A102
Manufacturer Murata Electronics North America
Catalog RF Filters
Description RF FILTER SIGNAL CONDITION 0603 / Frequency RF Filter (Radio Frequency) Bandwidth 0603 (1608 Metric), 4 PC Pad
Datasheet
LFD18859MDP1A102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Murata Electronics North America
Package Tape & Reel
Product Status Not For New Designs
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 4 PC Pad
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Base Product Number LFD18
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 179261-LFD18859MDP1A102
Ultra Librarian 3D Model Ultra Librarian LFD18859MDP1A102 CAD Model

Description

The 186440 is an RF filter from Murata Electronics. It is a tape & reel packaged filter with a size/dimension of 0.063" L x 0.032" W (1.60mm x 0.80mm).

  • Package: Tape & Reel
  • Size/Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Mounting Type: Surface Mount
  • Package/Case: 0603 (1608 Metric), 4 PC Pad
  • Lifecycle Status: Not for new designs
  • Package Quantity: 4,000 pcs
  • Height: 0.028" (0.70mm)
  • Frequency Range: 5.149GHz to 5.875GHz
  • Impedance: 50 / 50Ohm (unbalanced/balanced)
  • MSL: 1 (Unlimited)
  • HTSUS: 8543.70.9860
