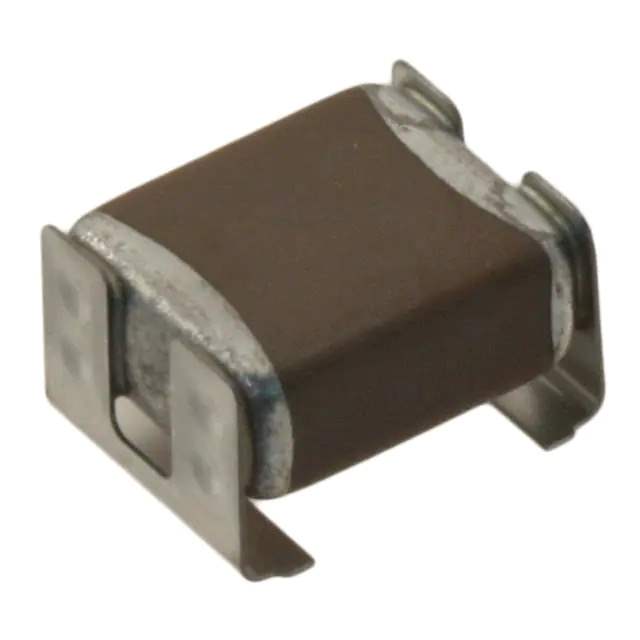

The KRM55LR72J224KH01L is a multilayer ceramic capacitor (MLCC) manufactured by Murata Electronics North America. This capacitor is designed for general-purpose applications requiring a stable and reliable capacitance value. MLCCs are known for their small size, high capacitance values, and excellent performance characteristics, making them suitable for a wide range of electronic devices.

Applications

• Consumer electronics: Used in smartphones, tablets, and laptops for decoupling and filtering.
• Automotive electronics: Incorporated into engine control units (ECUs), infotainment systems, and safety features.
• Industrial equipment: Found in power supplies, motor drives, and control systems.
• Medical devices: Used in patient monitoring equipment and diagnostic tools.
• Telecommunications: Incorporated in base stations, routers, and networking equipment.

Features

• Capacitance: 0.22 µF (220 nF)
• Voltage Rating: 6.3 VDC
• Tolerance: ±10%
• Dielectric Material: X7R
• Case Size: 2220 (5750 metric)
• Operating Temperature Range: -55°C to +125°C
• RoHS Compliant: Environmentally friendly, lead-free construction.

Benefits

• Stable Capacitance: Provides consistent performance over temperature and voltage variations.
• Small Size: Allows for dense circuit board layouts.
• High Reliability: Offers long-term performance in demanding applications.
• Wide Temperature Range: Suitable for a wide range of operating environments.
• Cost-Effective: Provides a balance of performance and affordability.

Additional Details

The KRM55LR72J224KH01L capacitor utilizes the X7R dielectric material, which provides a stable capacitance over a wide temperature range. The 2220 case size allows for high capacitance values in a compact footprint. The capacitor is designed for surface mount applications and is compatible with automated assembly processes. The tape and reel packaging facilitates easy handling and placement during manufacturing. Murata is a leading manufacturer of MLCCs, known for their consistent quality and reliable performance. This capacitor is a versatile choice for general-purpose applications requiring a stable and dependable capacitance value.
