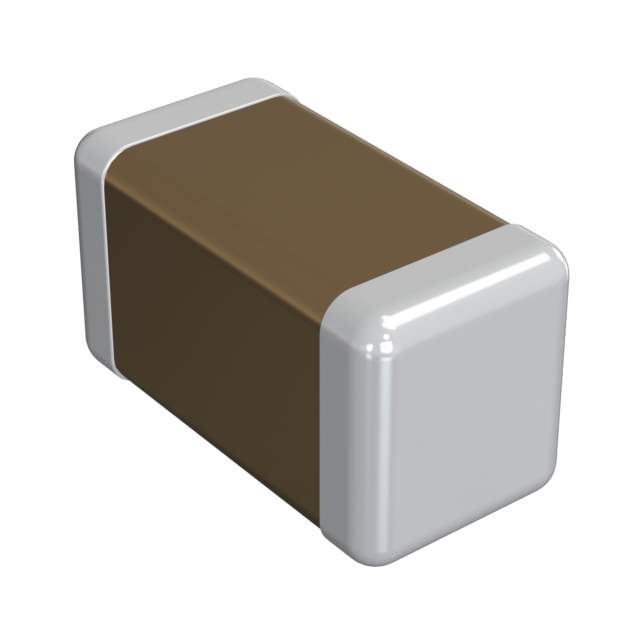

The GRM1555C1H6R8CA01D is a ceramic capacitor manufactured by Murata Electronics North America. It is part of the GRM series, which is designed for general-purpose applications requiring stable capacitance and reliable performance. This capacitor is commonly used in a wide range of electronic devices, including mobile phones, consumer electronics, and industrial equipment.

Applications

• Decoupling capacitors in digital circuits
• Bypass capacitors in analog circuits
• Filtering capacitors in power supplies
• General-purpose use in electronic circuits
• Mobile phones and consumer electronics

Features

• Small size (0402 package)
• High capacitance stability
• Low equivalent series resistance (ESR)
• High reliability
• C0G (NP0) dielectric

Benefits

• Effective noise reduction in electronic circuits
• Improved signal integrity
• Stable performance over temperature and voltage
• Long-term operational reliability
• Minimal power loss

Additional Details

The GRM1555C1H6R8CA01D has a capacitance of 6.8 pF (picofarads) and a voltage rating of 50 VDC. It utilizes a C0G (NP0) dielectric, which provides excellent capacitance stability over a wide temperature range (-55°C to +125°C) and voltage range. The 0402 case size corresponds to dimensions of 1.0 mm x 0.5 mm, making it suitable for high-density circuit board designs.

The low ESR (Equivalent Series Resistance) minimizes power dissipation and improves the capacitor's performance in high-frequency applications. The GRM series is known for its high reliability and consistent performance, making it a popular choice for demanding applications. The C0G dielectric ensures that the capacitance remains relatively constant over a wide range of operating conditions, which is critical for maintaining circuit stability.

When selecting ceramic capacitors, it's important to consider factors such as capacitance, voltage rating, temperature coefficient, and ESR. The GRM1555C1H6R8CA01D offers a good balance of these characteristics for general-purpose applications. Proper soldering techniques and handling precautions should be observed to prevent damage during assembly. Refer to the manufacturer's datasheet for complete specifications and application guidelines.
