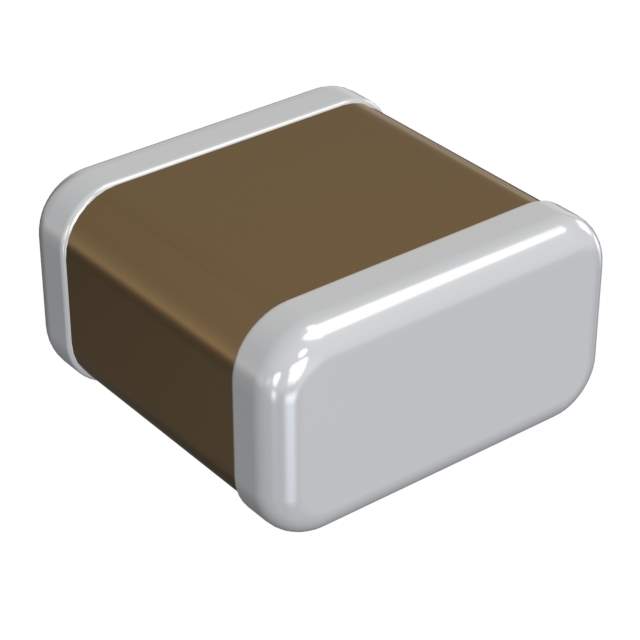

The GRM0335C1HR10BA01D is a ceramic capacitor manufactured by Murata Electronics North America. It belongs to the GRM series, known for its small size and high reliability. This capacitor is designed for general-purpose applications, particularly in high-frequency circuits.

Applications

• Mobile phones and smartphones
• Wireless communication devices
• RF modules
• High-frequency circuits
• Consumer electronics
• Portable devices

Features

• Capacitance: 0.1 pF (Picofarads)
• Voltage rating: 50 VDC
• Temperature coefficient: C0G (NP0), indicating high stability over temperature
• Tolerance: ±0.1 pF
• Size: 0201 (0.6mm x 0.3mm) - ultra-compact size for high-density mounting
• Termination: Sn (Tin) plating

Benefits

• Extremely stable capacitance over a wide temperature range ensures consistent circuit performance.
• Small size is ideal for high-density mounting, maximizing board space.
• Low equivalent series resistance (ESR) minimizes signal loss in high-frequency applications.
• High self-resonant frequency (SRF) makes it suitable for RF circuits.
• RoHS compliant, meeting environmental regulations.

Additional Details

The GRM0335C1HR10BA01D uses a ceramic dielectric material with a C0G (NP0) temperature coefficient, providing exceptional capacitance stability with temperature variations, typically within ±30 ppm/°C. This is critical for ensuring consistent performance in sensitive high-frequency circuits. The very tight tolerance of ±0.1 pF makes it suitable for applications requiring precise capacitance values. Its 0201 package enables dense placement on circuit boards, essential for miniaturizing electronic devices. The tin-plated terminations provide excellent solderability and resistance to oxidation, contributing to long-term reliability. Designed for automated assembly, it is suitable for high-volume manufacturing. Its combination of high stability, small size, and low ESR makes it an excellent choice for RF and high-frequency applications in portable and wireless devices.
