Same model may have multiple batches, images only for reference.

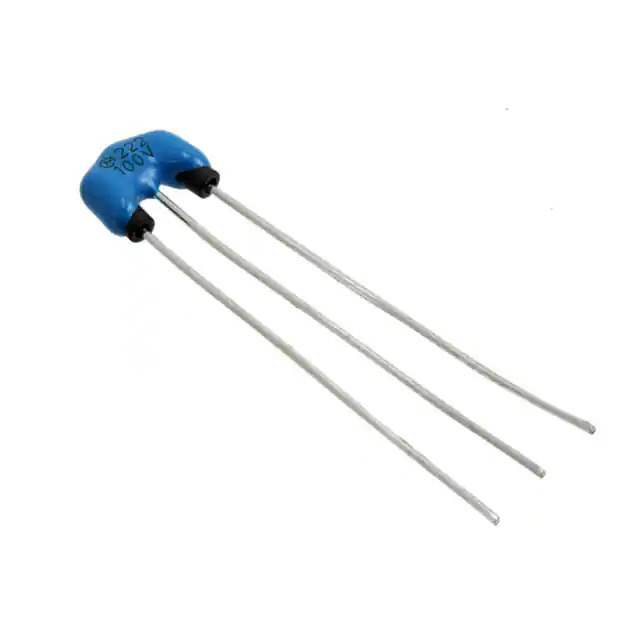

DSS1NB32A222Q55B Real Image
Same model may have multiple batches, images only for reference.

DSS1NB32A222Q55B

Part No DSS1NB32A222Q55B
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description EMI SUPPRESSION FILTERS
Datasheet
DSS1NB32A222Q55B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Murata Electronics North America
Series EMIFIL®, DSS1
Package Bulk
Product Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 6 A
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications General Purpose
Voltage - Rated 100V
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Size / Dimension 0.335" L x 0.138" W (8.50mm x 3.50mm)
Height 0.295" (7.50mm)
Base Product Number DSS1NB32A
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 852477-DSS1NB32A222Q55B
Ultra Librarian 3D Model Ultra Librarian DSS1NB32A222Q55B CAD Model

Description

The 852477-DSS1NB32A222Q55B is an EMI/RFI filter from Murata Electronics North America.

  • Series: EMIFIL® DSS1
  • Mounting: Through-Hole
  • Size: 0.335" L x 0.138" W (8.50mm x 3.50mm)
  • Height: 0.295" (7.50mm)
  • Application: General-Purpose
  • Rated Voltage: 100V
  • Current Rating: 6A
  • Package: Bulk
  • Standard Package: 250 pieces
  • ECCN: EAR99
  • MSL Level: 1
