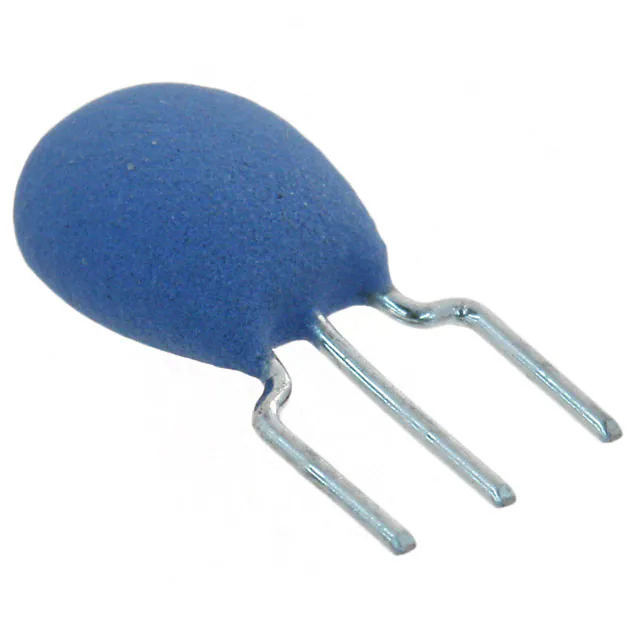

Same model may have multiple batches, images only for reference.
CSTLS16M0X53-A0 Murata Electronics North America
Same model may have multiple batches, images only for reference.

CSTLS16M0X53-A0

Part No CSTLS16M0X53-A0
Manufacturer Murata Electronics North America
Catalog Resonators
Description CERAMIC RES 16.0000MHZ 15PF T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Resonators
Mfr Murata Electronics
Series CERALOCK® CSTLS
Product Status Active
Type Ceramic
Frequency 16 MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 15 pF
Impedance 50 Ohms
Temperature Range - Operating -20°C ~ 80°C
Mounting Type Through Hole
Package / Case Radial - 3 Lead, 2.50mm Pitch
Size / Dimension 0.217" L x 0.118" W (5.50mm x 3.00mm)
Height 0.256" (6.50mm)
Base Product Number CSTLS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1366301-CSTLS16M0X53-A0
Ultra Librarian 3D Model Ultra Librarian CSTLS16M0X53-A0 CAD Model

Description

The Murata Electronics CSTLS16M0X53-A0 is a ceramic resonator with a frequency of 16 MHz. It features a built-in capacitor and has a capacitance of 15 pF.

  • Manufacturer: Murata Electronics
  • Frequency: 16 MHz
  • Built-in Capacitor: Yes
  • Capacitance: 15 pF
  • Mounting Type: Through Hole
  • Package Size: 0.217" L x 0.118" W (5.50mm x 3.00mm)
  • Operating Temperature: -20°C to 80°C
  • Frequency Stability: ±0.2%
  • Series: CERALOCK®
