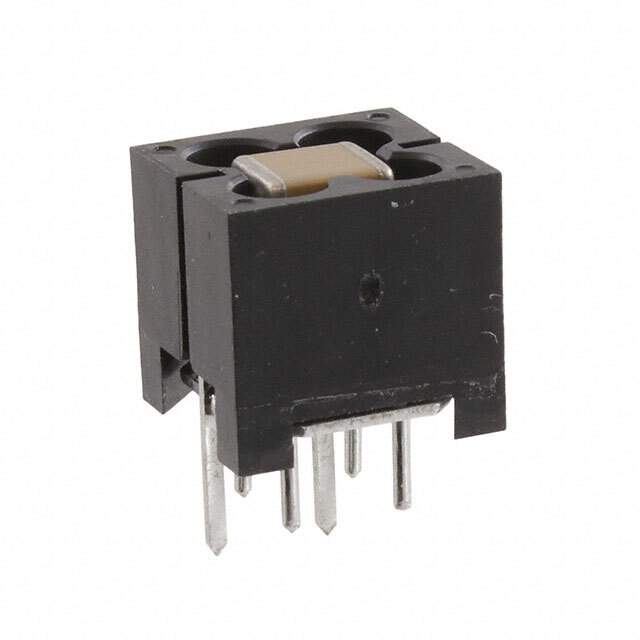

BNX003-11 Real Image
Same model may have multiple batches, images only for reference.

BNX003-11

Part No BNX003-11
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER EMI SUPPRESSION BLOCK
Datasheet
BNX003-11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 32 Weeks
Features LC EMI Filter 5th Order Low Pass 2 Channel - 10 Block, 4 Lead
Manufacturer Murata Electronics North America
Series EMIFIL®, BNX
Package Box
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package Block, 4 Lead
Family Name BNX0
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 490-18607, BNX003-11-ND, BNX00311
Quantity per package 100
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864455-BNX003-11
Ultra Librarian 3D Model Ultra Librarian BNX003-11 CAD Model

Description

The BNX003-11 from Murata Electronics North America is a 5th order low pass LC EMI filter with 2 channels and 10 blocks.

  • Filter Type: Low Pass LC EMI Filter
  • Order: 5th
  • Channels: 2
  • Blocks: 10
  • Package: Block, 4 lead
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Quantity per Package: 100
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 32 weeks
