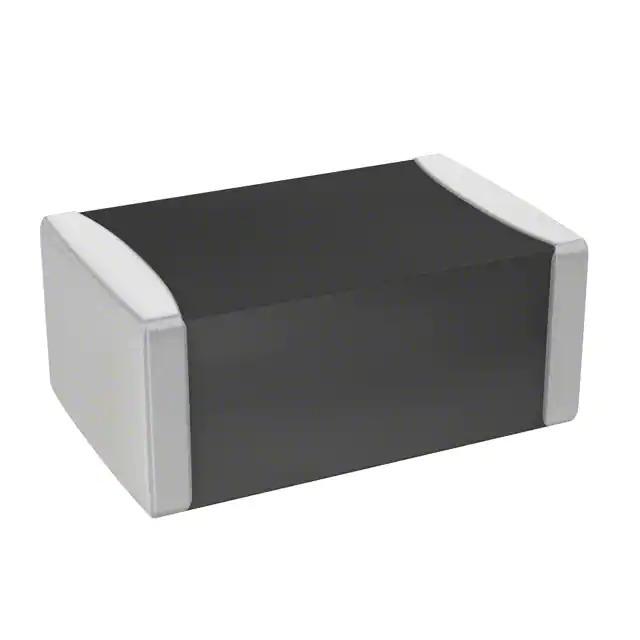

BLM21AG102SZ1D Murata Electronics North America
Same model may have multiple batches, images only for reference.

BLM21AG102SZ1D

Part No BLM21AG102SZ1D
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1K OHM 0805 1LN
Datasheet
BLM21AG102SZ1D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Murata Electronics
Series EMIFIL®, BLM18
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 270mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.041" (1.05mm)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Base Product Number BLM21AG
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369276-BLM21AG102SZ1D
Ultra Librarian 3D Model Ultra Librarian BLM21AG102SZ1D CAD Model

Description

The 1369276-BLM21AG102SZ1D is a ferrite bead from Murata Electronics.

  • Series: EMIFIL®, BLM18
  • Mounting Type: Surface Mount
  • Impedance @ Frequency: 1 kOhms @ 100 MHz
  • Current Rating (Max): 600mA
  • DC Resistance (DCR) (Max): 270mOhm
  • Package / Case: 0805 (2012 Metric)
  • Size / Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height - Seated (Max): 0.041" (1.05mm)
  • Status: Active
  • Packaging: Tape & Reel (TR)
  • REACH: Unaffected
  • ECCN: EAR99
  • Function: Signal Line Filtering
