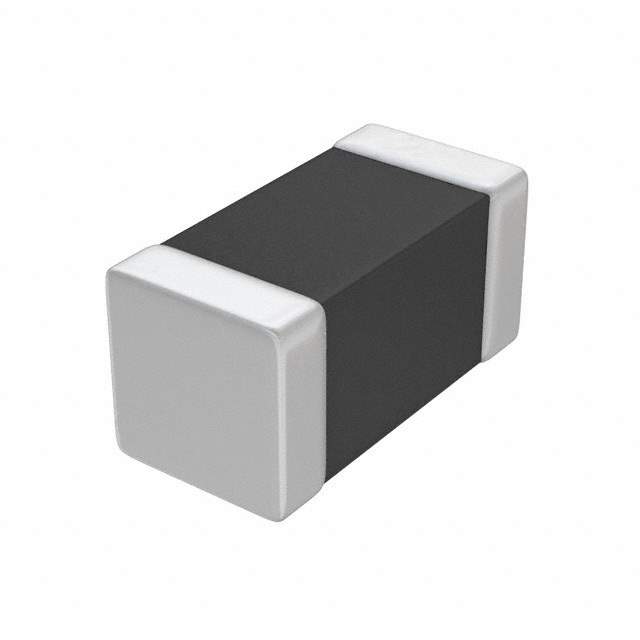

The BLM18HE152SN1 is a ferrite bead from Murata Electronics North America, specifically designed for noise suppression in high-speed signal lines. It is effective in reducing noise in circuits operating at high frequencies, ensuring signal integrity and optimal performance.

Applications

• Noise suppression in USB lines.
• Filtering high-frequency noise in HDMI cables.
• EMI reduction in LVDS (Low-Voltage Differential Signaling) circuits.
• Noise filtering in high-speed data transmission lines.
• Suppression of ringing and overshoot in digital circuits.
• Noise reduction in display interfaces.

Features

• Compact 0603 Size: Ideal for use in densely packed circuit boards.
• High Impedance at High Frequencies: Provides effective noise attenuation.
• Low DC Resistance: Minimizes power loss in the signal path.
• Excellent Noise Suppression Performance: Offers significant reduction in unwanted noise.
• Surface Mount Technology (SMT): Facilitates automated assembly processes.
• RoHS Compliant: Meets environmental safety standards.

Benefits

• Improved Signal Integrity: Reduces noise and interference, resulting in cleaner signals.
• Enhanced System Performance: Prevents noise from affecting the operation of sensitive components.
• Reduced EMI: Minimizes electromagnetic emissions, helping to meet regulatory requirements.
• Increased Reliability: Protects circuits from damage due to noise spikes.
• Simplified Design: Easy to implement in various circuit designs without significant modifications.

Additional Details

The BLM18HE152SN1 has an impedance of 1500 Ohms at 100 MHz. The low DC resistance ensures minimal power loss, typically less than 0.2 Ohms. It is designed to operate over a wide temperature range, generally from -55°C to +125°C. This ferrite bead is constructed using specialized materials to provide optimal noise suppression in high-speed data lines and is available in tape and reel packaging for efficient automated assembly.
