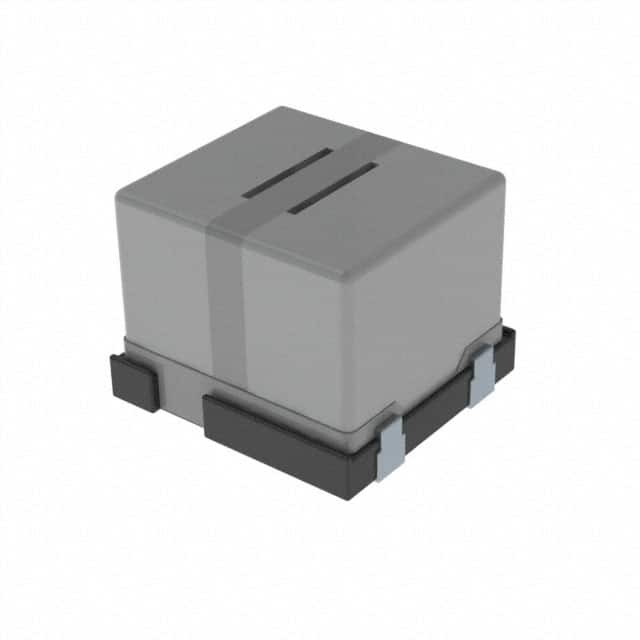

1211EA-1004=P3 Murata Electronics North America
Same model may have multiple batches, images only for reference.

1211EA-1004=P3

Part No 1211EA-1004=P3
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 10UH 2.8A 25 MOHM SMD / 10 µH Unshielded Drum Core, Wirewound Inductor 2.8 A 25mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 5A
Shielding Unshielded
DC Resistance (DCR) 25mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.409" L x 0.421" W (10.40mm x 10.70mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number 1211EA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-17661-6,490-17661-2,DIGI-1211EA-1004=P3,490-17661-1
Standard Package 250
Win Source Part Number 1188991-1211EA-1004=P3
Ultra Librarian 3D Model Ultra Librarian 1211EA-1004=P3 CAD Model

Description

The Murata Electronics 1188991-1211EA-1004=P3 is a fixed inductor with a drum core and a wirewound type.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 25mOhm Max
  • Current Rating: 2.8 A
  • Shielded: Yes
  • Height: 0.394"
  • Package: Nonstandard, 0.409" L x 0.421" W
  • Package Quantity: 250
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
  • Lifecycle Status: Not For New Designs
