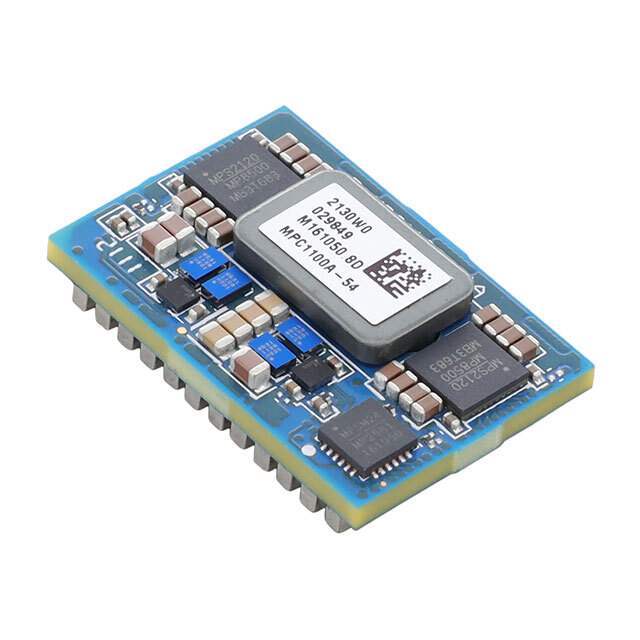

MPC1100A-54-0000-Z Monolithic Power Systems Inc.
Same model may have multiple batches, images only for reference.

MPC1100A-54-0000-Z

Part No MPC1100A-54-0000-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description HIGH-EFFICIENCY, NON-ISOLATED, F
Datasheet
MPC1100A-54-0000-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Monolithic Power Systems Inc.
Category Power Supplies - Board Mount > DC DC Converters
Part Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 40V
Voltage - Input (Max) 60V
Voltage - Output 1 4 ~ 6V
Current - Output (Max) 60A
Applications ITE (Commercial)
Ultra Librarian 3D Model Ultra Librarian MPC1100A-54-0000-Z CAD Model

Description

The MPC1100A-54-0000 is a high-efficiency, non-isolated LLC-DCX power card module with a fixed 10:1 transformer turns ratio. The device operates from a 40V to 60V DC primary bus and a 4V to 6V output voltage. It can deliver up to 300W of power.

The MPC1100A-54-0000 employs MPS’s MP2981 (a digital LLC controller) and MP8500 (a smart synchronous rectifier). These devices can adjust the PWM to optimize the MPC1100A54-0000, and ensure that the MPC1100A-54- 0000 works at the resonant frequency.
