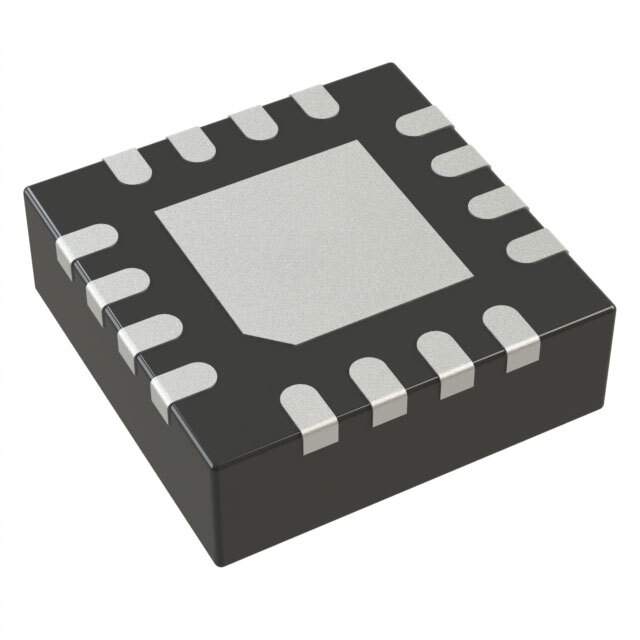

MA120GQ-Z Real Image
Same model may have multiple batches, images only for reference.

MA120GQ-Z

Part No MA120GQ-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE SMD / Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Datasheet
MA120GQ-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Monolithic Power Systems Inc.
Package Tape & Reel (TR)
Product Status Obsolete
For Measuring Angle
Technology Hall Effect
Output SPI
Actuator Type External Magnet, Not Included
Voltage - Supply 3V ~ 3.6V
Mounting SMD (SMT)
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 125°C
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number MA120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 5,000
Win Source Part Number 1131339-MA120GQ-Z
Ultra Librarian 3D Model Ultra Librarian MA120GQ-Z CAD Model

Description

The MA120GQ-Z is a position sensor for measuring angle from Monolithic Power Systems Inc.

  • Sensor Type: Hall-Effect
  • Output Signal: SPI
  • Mounting: SMD (SMT) tab
  • Packaging: Tape and Reel
  • External Magnet: Not Included
  • Voltage Supply Range: 3V to 3.6V
  • Operating Temperature Range: -40°C to 125°C
  • Package/Case Size: 16-VFQFN exposed pad
  • Supplier Device Package: 16-QFN (3x3)
