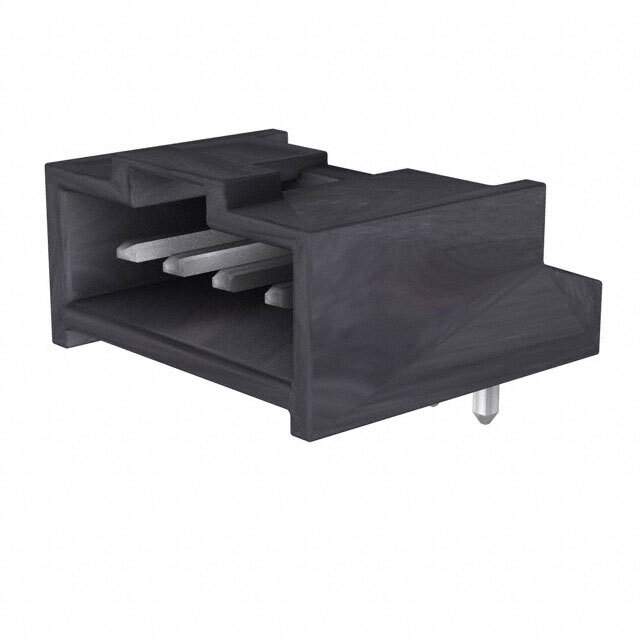

90136-2104 Real Image
Same model may have multiple batches, images only for reference.

90136-2104

Part No 90136-2104
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 4 POS 2.54mm Solder RA Side Entry Thru-Hole Package
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Brass
Contact Mating Length 6.7564 mm
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin SK
Current Rating 3 A
Fastening Type Latch
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material Polyester
Lead Free Yes
Lead Pitch 2.54 mm
Maximum Operating Temperature 125 °C
Max Voltage Rating (DC) 350.35 kV
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Positions 4
Number of Rows 1
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 350 V
Voltage Rating (DC) 350 V
Win Source Part Number 1041569-90136-2104
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90136-2104 CAD Model

Description

The Molex 1041569-90136-2104 is a male pin connector with 4 positions and a pitch of 2.54mm.

  • Connector Type: Male Pin
  • Positions: 4
  • Pitch: 2.54mm
  • Orientation: Right-Angle
  • Fastening Type: Latch
  • Housing Material: Black Polyester
  • Contact Plating: Gold
  • Mounting Type: Through-Hole
  • Maximum Operating Temperature: 125°C
  • RoHS Compliant: Yes
  • Suitable for: Various Applications
