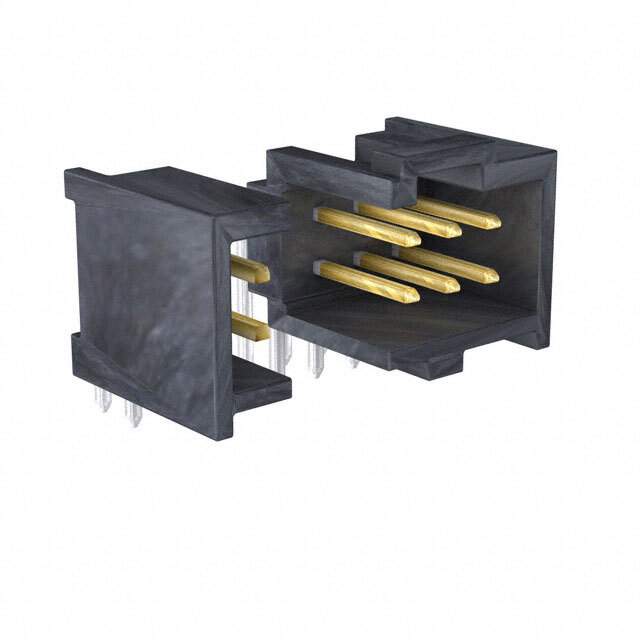

90130-3312 Real Image
Same model may have multiple batches, images only for reference.

90130-3312

Part No 90130-3312
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole C-Grid III™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Brass
Contact Plating Gold
Country of Origin SK
Current Rating 3 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Pitch 2.54 mm
Max Operating Temperature 125 °C
Max Voltage Rating (DC) 350.35 kV
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 12
Number of Positions 12
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating 350 V
Voltage Rating (DC) 350 V
Win Source Part Number 1189310-90130-3312
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90130-3312 CAD Model

Description

This 12-position connector from Molex is a versatile and reliable solution for your circuit board needs.

  • Positions: 12
  • Pitch: 2.54mm
  • Win Source Part Number: 1189310-90130-3312
  • Gender: Male
  • Material: Polyester
  • Contact Material: Brass
  • Contact Plating: Gold
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Category: Circular Connector Housings
  • Popularity: Medium
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
