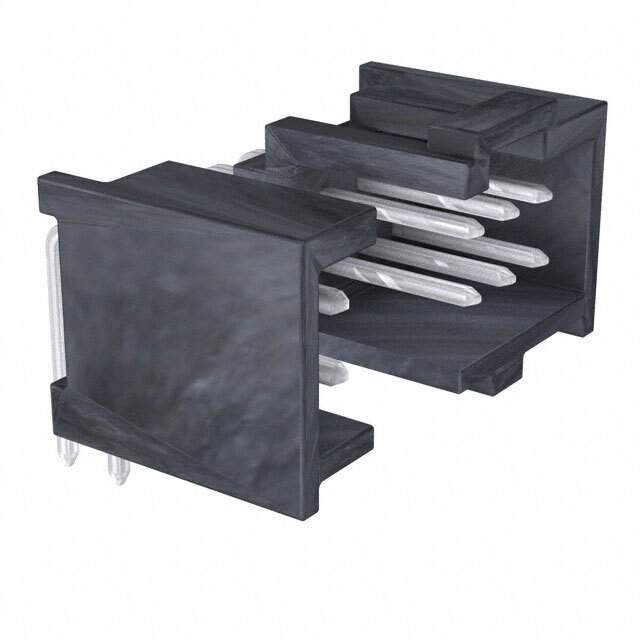

90130-3114 Real Image
Same model may have multiple batches, images only for reference.

90130-3114

Part No 90130-3114
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 14 POS 2.54mm Solder RA Thru-Hole C-Grid III™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Brass
Contact Mating Length 6.7564 mm
Contact Plating Tin
Country of Origin US
Current Rating 3 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material Polyester
Lead Free Lead Free
Lead Pitch 2.54 mm
Max Operating Temperature 125 °C
Max Voltage Rating (DC) 350.35 kV
Min Operating Temperature -55 °C
Mount Through Hole
Number of Circuits 14
Number of Contacts 14
Number of Pins 14
Number of Positions 14
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Row Spacing 2.54 mm
Termination Solder
Voltage Rating 350 V
Voltage Rating (DC) 350 V
Win Source Part Number 1207056-90130-3114
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90130-3114 CAD Model

Description

This Molex, LLC male pin connector has 14 positions, 2 rows, and a pitch of 2.54 mm.

  • Positions: 14
  • Rows: 2
  • Pitch: 2.54 mm
  • Row Spacing: 2.54 mm
  • Termination: Solder
  • Contact Mating Length: 6.7564 mm
  • Contact Material: Brass
  • Voltage Rating: 350 V
  • Current Rating: 3 A
  • Housing Material: Polyester
  • Orientation: Right Angle
  • Contact Plating: Tin
  • Plating: Tin
  • Housing Color: Black
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Radiation Hardening: No
  • Min Operating Temperature: -55 °C
  • Max Voltage Rating (DC): 350.35 kV
  • Glow Wire Compliant Status: Non-Compliant
  • Alternative Parts (Cross-Reference): 0901303114 and 901303114
