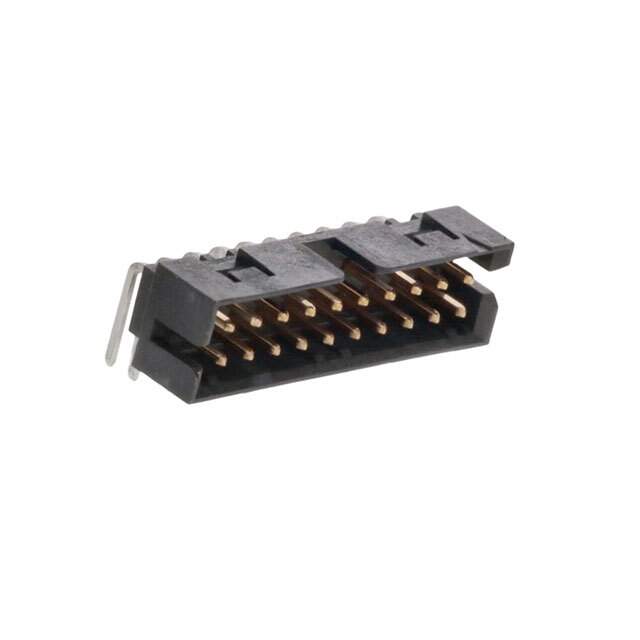

Same model may have multiple batches, images only for reference.

878332020

Name: 878332020
Brand: Molex, LLC
SKU: 30114
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	878332020
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 20POS 2MM R/A GOLD
Datasheet	878332020 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	0.085" (2.16mm)
Insulation Height	0.248" (6.30mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	74.8μin (1.90μm)
Applications	Automotive, General Purpose, Telecommunications
Win Source Part Number	039039-878332020
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 878332020 CAD Model

Alternative Products

Description

The 878332020 connector is a premium electronic component designed for efficiency and reliability. It is optimized for use in sophisticated electronic systems requiring precision and dependable connections.

Features and Benefits

High Efficiency: Optimized for low power loss and high efficiency.
Dependability: Features a robust design for continuous operation.
Precision Connective Solutions: Supports advanced electronic circuitries.
Flexible Installation: Adaptable to various mounting and connection methods.

Applications

Advanced Robotics
Automotive Control Systems
Renewable Energy Systems
High-Tech Consumer Devices

Additional Details

The 878332020 stands out for its advanced engineering and flexible adaptability, making it ideal for emerging technologies and sophisticated electronic projects.
