Same model may have multiple batches, images only for reference.

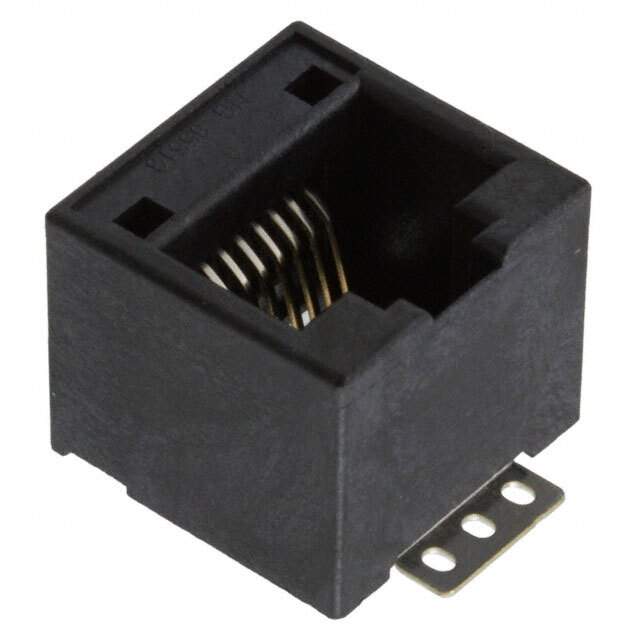

85513-5001 Real Image
Same model may have multiple batches, images only for reference.

85513-5001

Part No 85513-5001
Manufacturer Molex, LLC
Catalog Modular Connectors
Description Modular Jack, Vertical, Top Entry, Surface Mount, 8/8, Low Profile, 15" Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type RJ45
Contact Material Copper
Contact Plating Gold
Country of Origin SG
Current Rating 1.5 A
Flammability Rating UL94 V-0
Gender Female
Halogen Free Low Halogen
Housing Material Thermoplastic
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Contacts 8
Number of Ports 1
Number of Positions 8
Orientation Straight
Packaging Cut Tape
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination SMD/SMT
Voltage Rating (DC) 125 V
Win Source Part Number 983195-85513-5001
Categories Modular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 85513-5001 CAD Model

Description

The Molex 983195-85513-5001 is an 8-position RJ45 connector with SMD/SMT termination.

  • Pitch: 1.27mm
  • Current Rating: 1.5A
  • Shielding: Unshielded
  • Housing Material: Thermoplastic
  • Contact Material: Copper
  • Contact Plating: Gold
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -40°C
  • Voltage Rating (DC): 125V
  • RoHS Compliant: Yes
  • Mounting: Surface Mount
  • Halogen: Low Halogen
  • Connector Type: Modular
  • Ports: 1
  • Plating: Tin
  • Supply Status: Short
  • Popularity: Low
  • Counterfeit Risk: High
