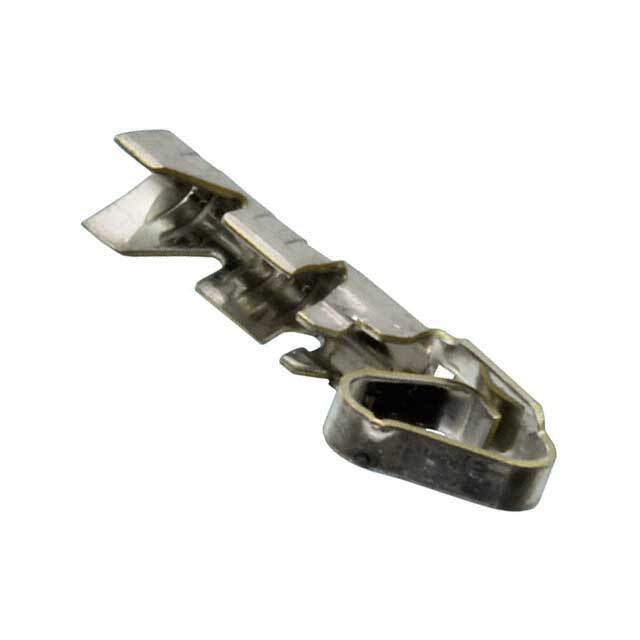

Same model may have multiple batches, images only for reference.

0008500032

Name: 0008500032
Brand: Molex, LLC
SKU: 1333536
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0008500032
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN 22-30AWG CRIMP TIN / Non-Gendered Contact Tin 22-30 AWG Crimp
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer	Molex
Packaging	Bulk
Pin or Socket	Non-Gendered
Contact Termination	Crimp
Wire Gauge	22-30 AWG
Contact Finish	Tin
Contact Finish Thickness	40.0µin (1.02µm)
Base Product Number	000850
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Part Number	08500032-E,WM2623,0008-50-0032-E,08500032,4809-C-P902-L,0008500032-E,08-50-0032,0008-50-0032,8500032,08-50-0032-E,4809C-(P918)L
Standard Package	80,000
Win Source Part Number	1333536-0008500032
Ultra Librarian 3D Model	Ultra Librarian 0008500032 CAD Model

Alternative Products

Description

The 1333536-0008500032 is a rectangular connector contact from Molex.

Wire Gauge: 22-30 AWG
Contact Finish: Tin
Contact Finish Thickness: 40.0µin
Contact Termination: Crimp
Pin or Socket: Non-Gendered
ROHS3 Compliant: Yes
Packaging: Bulk
Standard Package: 80,000
