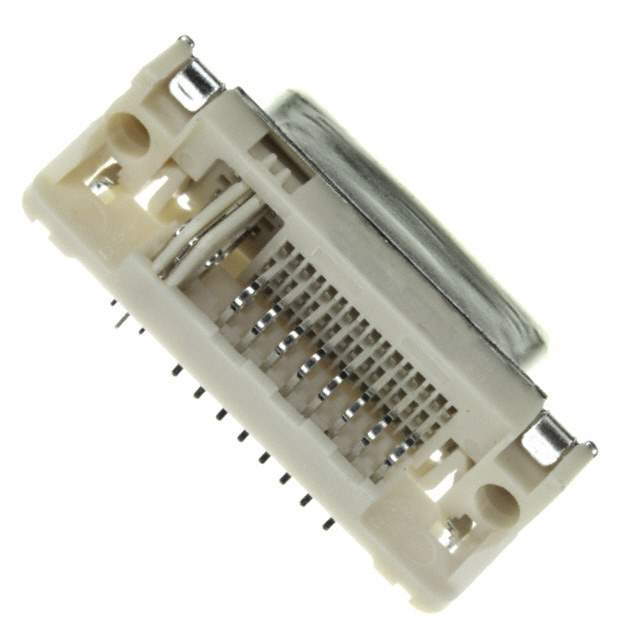

74320-9014 Real Image
Same model may have multiple batches, images only for reference.

74320-9014

Part No 74320-9014
Manufacturer Molex, LLC
Catalog Barrel - Audio Connectors
Description Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port MicroCross™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type DVI
Contact Material Copper
Contact Plating Gold
Country of Origin US
Current Rating 3 A
Depth 18.03 mm
Features Shielded
Gender Receptacle
Housing Material Polymer
Length 36.83 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 40 V
Min Operating Temperature -20 °C
Mount Panel, Through Hole
Number of Circuits 29
Number of Contacts 24
Number of Ports 1
Number of Positions 24
Number of Rows 3
Number of Terminals 24
Orientation Right Angle
Pitch 1.91 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Termination Through Hole
Voltage Rating 40 V
Voltage Rating (AC) 40 V
Voltage Rating (DC) 40 V
Width 9.91 mm
Win Source Part Number 1022792-74320-9014
Categories Barrel - Audio Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 74320-9014 CAD Model

Description

The Molex DVI connector is a shielded, 24-position receptacle with a pitch of 1.91mm. The manufacturer is Molex.

  • Positions: 24
  • Pitch: 1.91mm
  • Voltage Rating: 40V
  • Current Rating: 3A
  • Contact Material: copper, with gold plating
  • Housing Material: polymer
  • Mounting: through-hole mountable
  • Dimensions: 36.83mm x 9.91mm x 18.03mm
  • Orientation: right-angle
  • RoHS Compliant: Yes
  • Operating Temperature: 85°C (maximum)
  • Applications: audio applications
