Same model may have multiple batches, images only for reference.

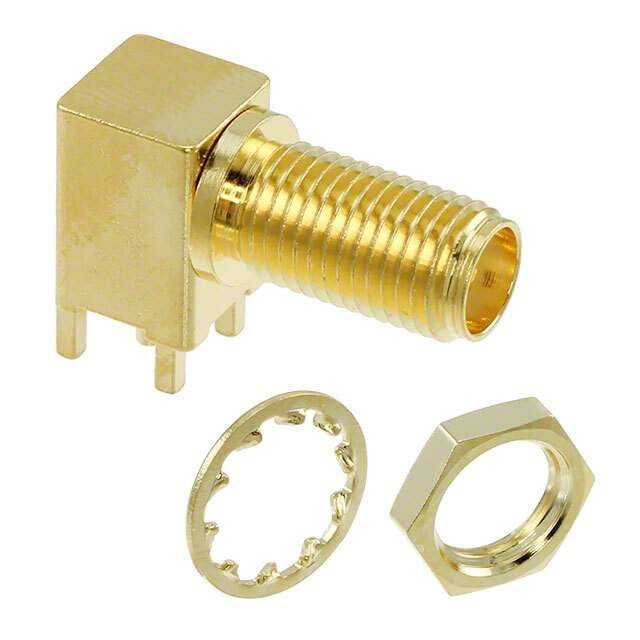

0732512201 Real Image
Same model may have multiple batches, images only for reference.

0732512201

Part No 0732512201
Manufacturer Molex, LLC
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK R/A 50 OHM PCB / SMA Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Molex
Packaging Tray
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 073251
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 73251-2201,732512201,732512201-E,WM5537,0732512201-E,073251-2201,Q6925373,SD-73251-220,73251-2201-E,073251-2201-E
Standard Package 1,400
Win Source Part Number 1331965-0732512201
Ultra Librarian 3D Model Ultra Librarian 0732512201 CAD Model

Description

The Molex SMA Jack Female Socket Connector is a coaxial connector assembly with a threaded fastening type and solder contact termination.

  • Voltage Rating: 500 V
  • Maximum Frequency: 18 GHz
  • Housing Color: Gold
  • Body Material: Brass
  • Center Contact Material: Beryllium copper
  • Center Contact Plating: Gold plating
  • Dielectric Material: Polytetrafluoroethylene
  • Mounting Style: Panel mount, through-hole, right-angle
  • Impedance: 50Ohm
  • Mating Cycle: 500
  • Operating Temperature Range: -65°C to 165°C
  • Standard Package: 1,400
  • Includes: Three pieces: one connector, one lockwasher, and one nut
  • RoHS Compliant: No
