Same model may have multiple batches, images only for reference.

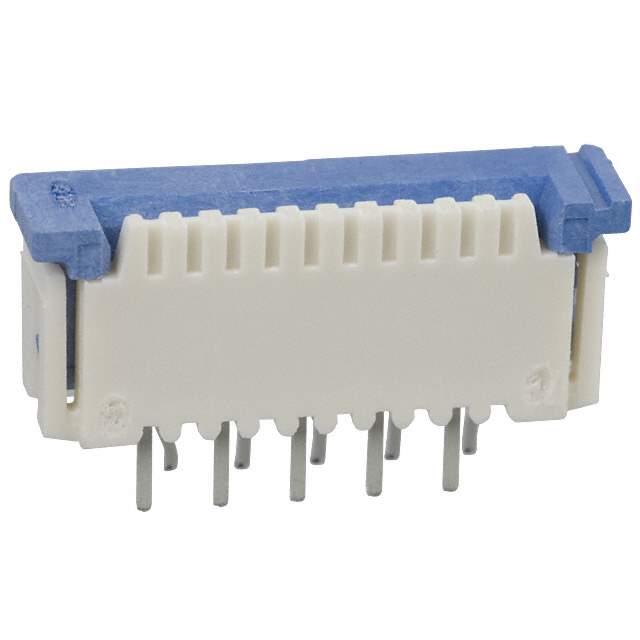

0712261025 Real Image
Same model may have multiple batches, images only for reference.

0712261025

Part No 0712261025
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 10POS 1MM PCB / 10 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex
Series 71226
Package Tray
Product Status Obsolete
Flat Flex Type FFC
Mounting Type Through Hole
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.236" (6.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA) , Nylon, Glass Filled
Actuator Material Liquid Crystal Polymer (LCP) , Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 125V
Temperature Range - Operating -20°C ~ 80°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 196.9µin (5.00µm)
Housing Color Natural
Actuator Color Blue
Mating Cycles 5
Base Product Number 071226
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1340686-0712261025
Ultra Librarian 3D Model Ultra Librarian 0712261025 CAD Model

Description

The Molex FFC, FPC (Flat Flexible) connector assemblies are designed for use in a range of electronic devices. The connectors feature a zero insertion force (ZIF) feature that ensures a secure connection.

  • Type: FFC, FPC (Flat Flexible)
  • Feature: Zero Insertion Force (ZIF)
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 125V
  • Packaging: Tray
  • Mounting Type: Through Hole
  • Manufacturer: Molex
