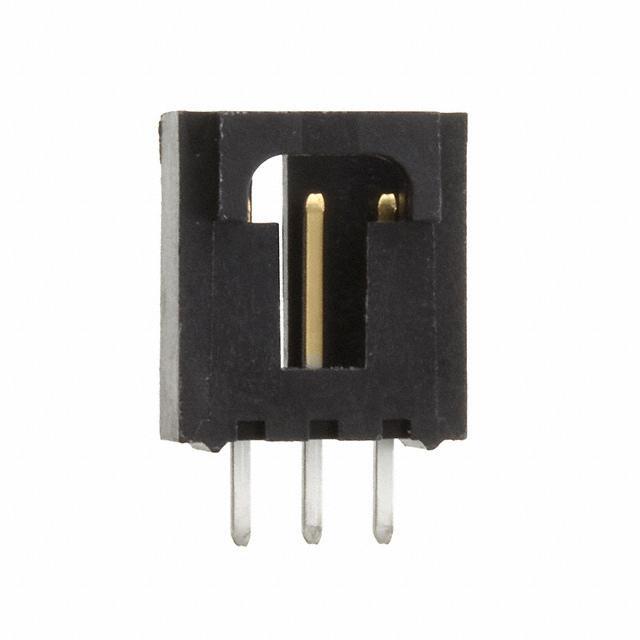

70543-0002

Part No 70543-0002
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 3POS .100 VERT GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.470" (11.94mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Industrial, Medical
Win Source Part Number 24252-70543-0002
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 70543-0002 CAD Model

Description

70543-0002 Connector

The 70543-0002 connector is a high-performance electronic component designed to provide reliable connections in complex electrical systems. This connector is versatile and suitable for a variety of applications, thanks to its robust construction and superior conductivity.

Features and Benefits:

  • High conductivity ensures efficient power transfer.
  • Durable construction for long-lasting use.
  • Compact design optimizes space in electronic assemblies.
  • Corrosion-resistant materials extend product lifespan.

Applications:

  • Consumer electronics assemblies
  • Automotive electrical systems
  • Industrial control equipment
  • Computer peripherals

With its compact design and high durability, the 70543-0002 connector is ideal for situations that demand reliability and performance under challenging conditions.
