Same model may have multiple batches, images only for reference.

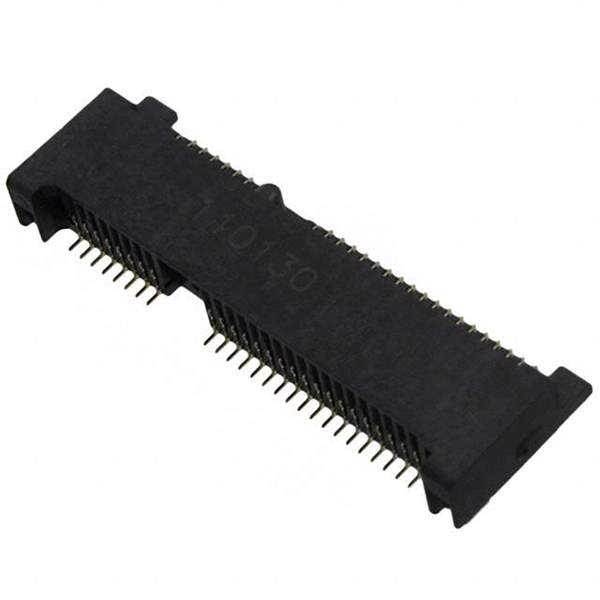

67910-0002 Real Image
Same model may have multiple batches, images only for reference.

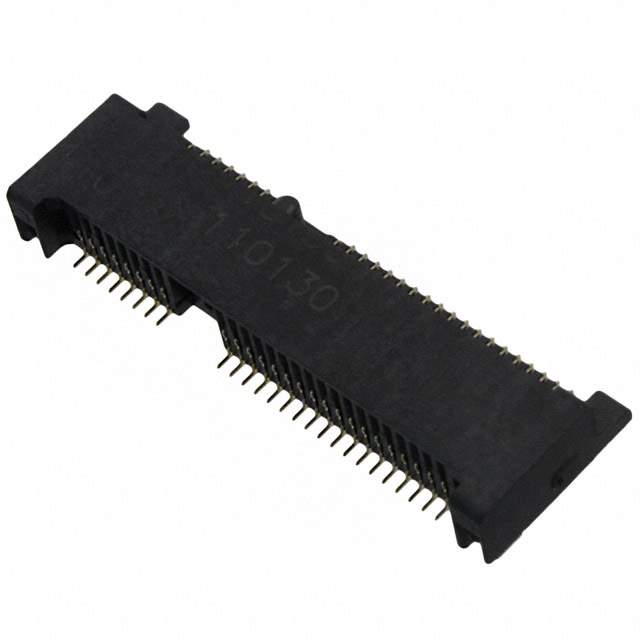

67910-0002

Part No 67910-0002
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description Free Height 60 Position Dual Row 0.8 mm Pitch Stacking Board to Board Socket
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Bronze, Gold, Nickel
Contact Plating Gold
Country of Origin TW
Current Rating 2 A
Gender Receptacle
Glow Wire Compliant Non-compliant
Height 4.25 mm
Housing Material Polymer
Insulation Resistance 500 MΩ
Lead Free Yes
Lead Pitch 780 µm
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 50 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 2
Number of Contacts 52
Number of Positions 52
Number of Rows 1
Orientation Vertical
Packaging Cut Tape
Pitch 800 µm
Plating Gold
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040, 8536694040
Termination SMD/SMT
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Weight 1.136986 g
Win Source Part Number 1012803-67910-0002
Categories Card Edge Connectors - Edgeboard Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 67910-0002 CAD Model

Description

The Molex 1012803-67910-0002 is a black, single-row, 52-position card edge connector.

  • Pitch: 800 μm
  • Voltage Rating: 50 V
  • Current Rating: 2 A
  • Termination Method: SMD/SMT
  • Contact Material: Bronze, gold, and nickel
  • Housing Material: Polymer
  • Contact Plating: Gold
  • Height: 4.25 mm
  • Weight: 1.136986 g
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Insulation Resistance: 500 MΩ
  • Category: Card Edge Connectors - Edgeboard Connectors
