Same model may have multiple batches, images only for reference.

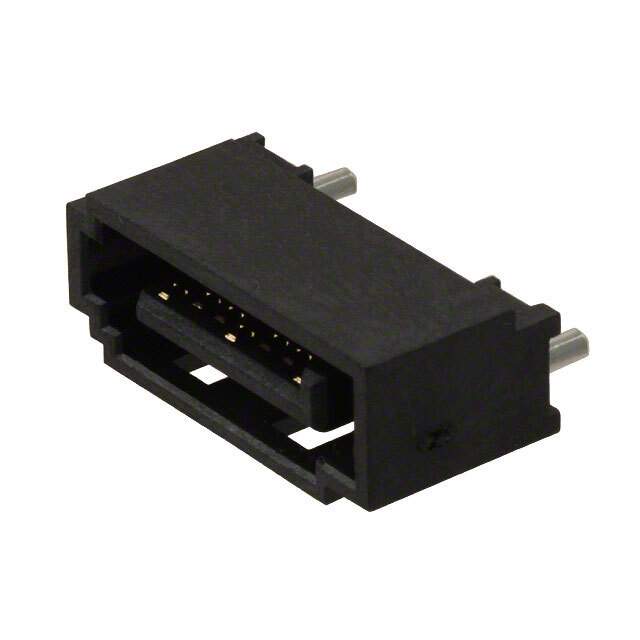

67800-5004 Real Image
Same model may have multiple batches, images only for reference.

67800-5004

Part No 67800-5004
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn SATA HDR 7 POS 1.27mm Solder ST SMD 7 Terminal 1 Port Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Yellow
Connector Type SATA
Contact Plating Gold
Country of Origin CN
Current Rating 1.5 A
Gender Male
Mount Surface Mount
Number of Circuits 7
Number of Positions 7
Number of Rows 1
Orientation Vertical
Pitch 1.27 mm
Plating Tin
RoHS Compliant
Termination Solder
Win Source Part Number 996972-67800-5004
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 67800-5004 CAD Model

Description

The 996972-67800-5004 is a SATA connector that has 7 positions and a pitch of 1.27 mm.

  • Color: Yellow
  • Gender: Male
  • Circuits: 7
  • Orientation: Vertical
  • Current Rating: 1.5 A
  • Contact Plating: Gold
  • Termination: Surface Mount
  • Plating: Tin
  • Supplier: Molex, LLC
  • RoHS Compliant: Yes
