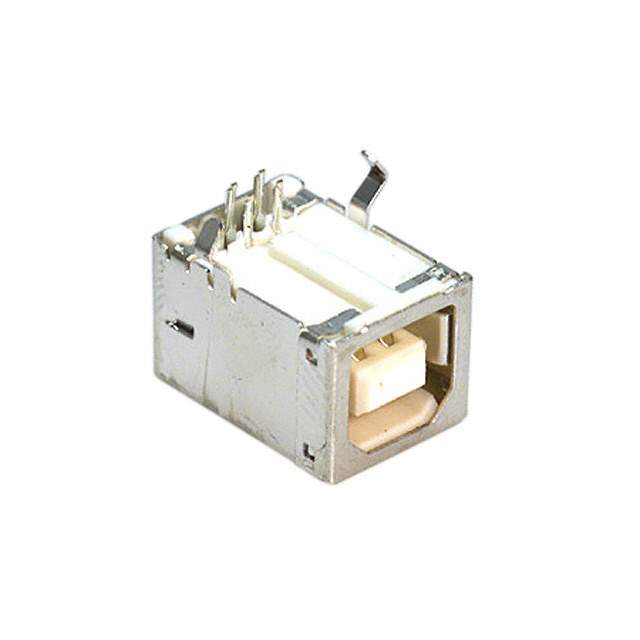

Same model may have multiple batches, images only for reference.

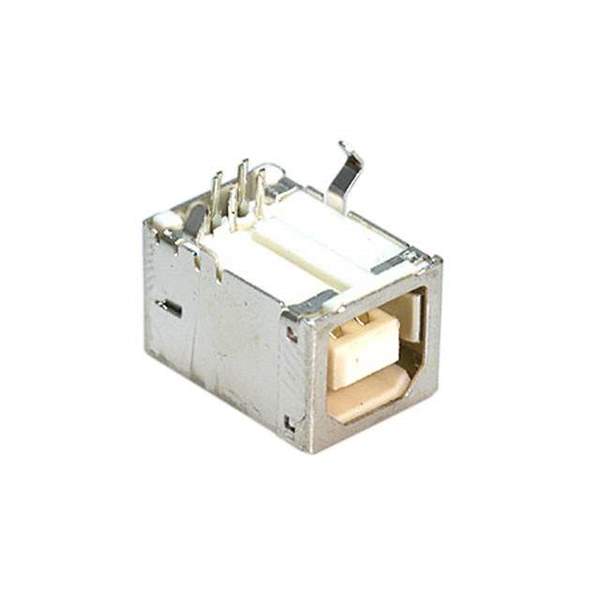

67068-9000 Real Image
Same model may have multiple batches, images only for reference.

67068-9000

Part No 67068-9000
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Conn.; Data; USB; Recept.; Shielded; Type B; Rt. Angle; w/Kinked Solder Tabs; White
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White, Natural
Connector Type Receptacle, USB
Contact Material Bronze
Contact Plating Gold
Country of Origin MX
Current Rating 1.5 A
Depth 17 mm
Flammability Rating UL94 V-0
Gender Female
Height 11 mm
Housing Color White
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Free Lead Free
Lead Pitch 2.5 mm
Length 12 mm
Max Operating Temperature 50 °C
Max Voltage Rating (AC) 30 V
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Pins 6
Number of Ports 1
Number of Positions 4
Number of Rows 2
Number of Terminals 4
Orientation Right Angle
Pitch 2.5 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
USB Standard USB 2.0
Voltage Rating 30 V
Voltage Rating (DC) 30 V
Width 12 mm
Win Source Part Number 1135776-67068-9000
Categories USB,DVI,HDMI Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 67068-9000 CAD Model

Description

The 67068-9000 USB connector from Molex, LLC is a female receptacle with 4 positions and a pitch of 2.5mm.

  • Connector Type: USB
  • Gender: Female
  • Positions: 4
  • Pitch: 2.5mm
  • Color: White, Natural
  • Suitable for: USB, DVI, HDMI connectors
  • Rows: 2
  • Termination: Soldered
  • Voltage Rating: 30V
  • Current Rating: 1.5A
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Housing Material: Polyester
  • Housing Color: White
  • Orientation: Right-Angled
  • Height: 11mm
  • Width: 12mm
  • Depth: 17mm
  • Circuits: 4
  • Pins: 6
  • USB Standard: USB 2.0
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Insulation Resistance: 1 GΩ
  • Maximum Operating Temperature: 50°C
  • Minimum Operating Temperature: 0°C
  • Maximum Voltage Rating (AC): 30V
  • Maximum Voltage Rating (DC): 30V
  • SVHC Content: None
