Same model may have multiple batches, images only for reference.

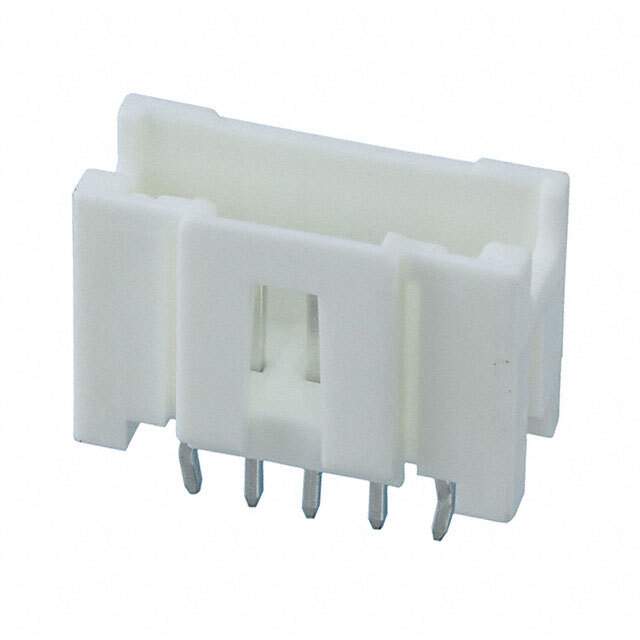

55932-0530 Real Image
Same model may have multiple batches, images only for reference.

55932-0530

Part No 55932-0530
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.00mm Pitch MicroClasp WTB Header Single Row Vertical 5 Circuits without PCB Locator
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Material Brass
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 3 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Pitch 2 mm
Material Polyester
Max Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 5
Number of Contacts 5
Number of Positions 5
Number of Rows 1
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Win Source Part Number 1150323-55932-0530
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 55932-0530 CAD Model

Description

The 55932-0530 is a white, through-hole, circular connector housing with a pitch of 2 mm and a current rating of 3 A manufactured by Molex, LLC.

  • Voltage Rating: 250 V
  • Material: Polyester
  • Positions: 5
  • Rows: 1
  • Contact Material: Brass
  • Contact Plating: Tin
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
  • Insulation Resistance: 1 GΩ
  • Contact Resistance: 20 mΩ
  • Lead Pitch: 2 mm
  • Maximum Operating Temperature: 85 °C
