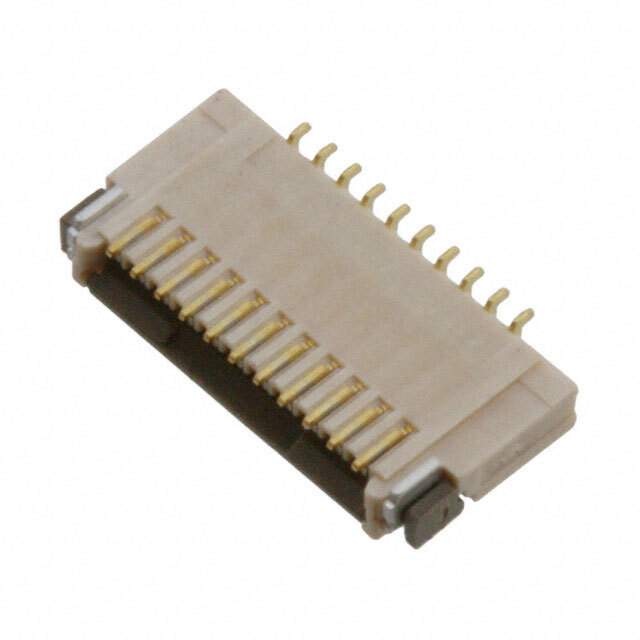

54809-2175 Real Image
Same model may have multiple batches, images only for reference.

54809-2175

Part No 54809-2175
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.30mm (.012 ) Pitch Easy-On™ Type FPC Connector, 1.30mm (.051 ) Mated Height, Right Angle, SMT, ZIF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Gold
Current Rating 200 mA
Depth 4.7 mm
Gender Receptacle
Housing Color Brown
Housing Material Thermoplastic
Length 8.6 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 50 V
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 21
Number of Contacts 21
Number of Positions 21
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 600 µm
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating (AC) 50 V
Win Source Part Number 969153-54809-2175
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 54809-2175 CAD Model

Description

This Molex connector is a surface mount connector with 21 contacts and a pitch of 600 µm.

  • Mounting: Surface mount
  • Contacts: 21
  • Pitch: 600 µm
  • Voltage Rating: 50 V
  • Current Rating: 200 mA
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Housing Material: Thermoplastic
  • Housing Color: Brown
  • RoHS: Compliant
  • Maximum Operating Temperature: 85 °C
  • Length: 8.6 mm
  • Depth: 4.7 mm
  • Suitable for: FFC/FPC (Flat Flexible) connectors
