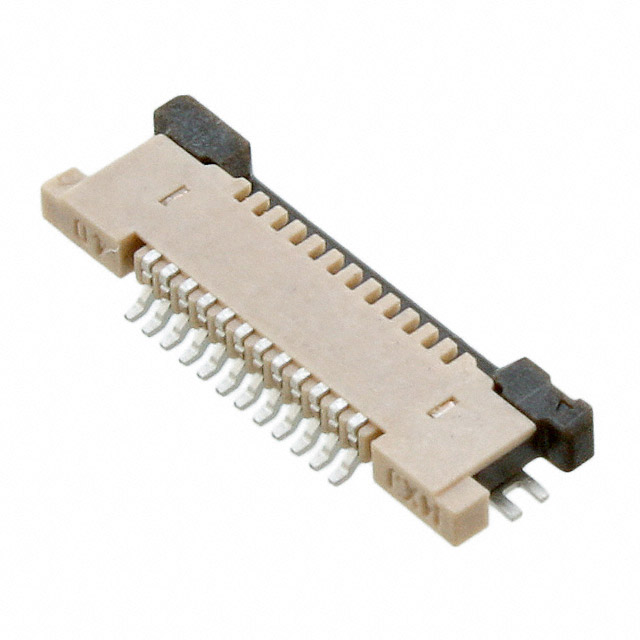

545501271

Part No 545501271
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 12 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family FFC, FPC (Flat Flexible) Connectors
Manufacturer Molex, LLC
Series Easy-On? 54550
Packaging Reel(TR)
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 12
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Win Source Part Number 122011-0545501271
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 545501271 CAD Model

Description

Product Overview

The 545501271 is a state-of-the-art component that offers efficient operation and superior quality. Its versatility makes it suitable for a diverse set of applications, from home devices to advanced industrial systems.

Applications

  • Wireless communication devices
  • Industrial robotics
  • Power management systems
  • Precision measuring equipment

Features and Benefits

  • Energy-efficient design
  • High precision and accuracy
  • Durable and long-lasting construction
  • Universal compatibility with various systems

Choosing the 545501271 ensures access to a reliable component that enhances system performance while ensuring minimal environmental impact.
