543933981

Part No 543933981
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors

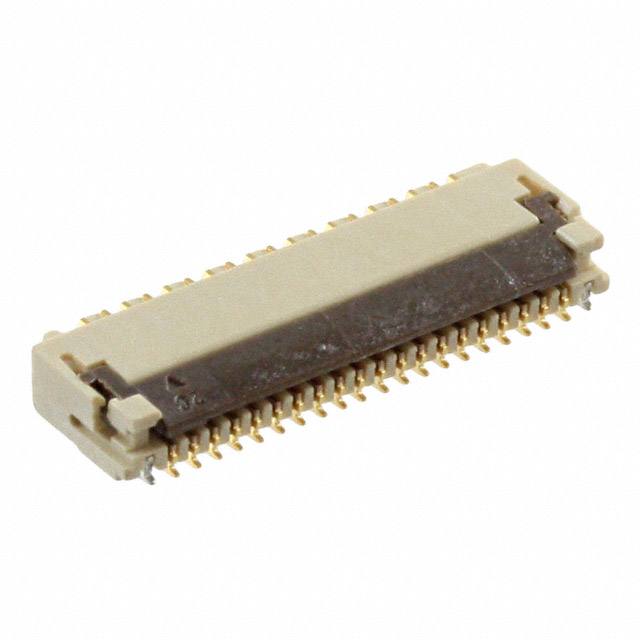

Description 39 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family FFC, FPC (Flat Flexible) Connectors
Manufacturer Molex, LLC
Series Easy-On? 54393
Packaging Bulk
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 39
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.077" (1.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Win Source Part Number 121973-0543933981
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 543933981 CAD Model

Description

Product Overview

Built with cutting-edge technology, the 543933981 offers enhanced performance and reliability for a wide range of electronic applications. Its flexible design adapts to various needs in today's tech-driven world.

Applications

  • Aerospace instrumentation
  • Medical devices
  • Renewable energy systems
  • Internet of Things (IoT) devices

Features and Benefits

  • Precision engineering for accuracy
  • High resistance to environmental factors
  • Extended operational life
  • Eco-friendly and sustainable materials

The 543933981 is a perfect choice for those seeking sustainability without compromising on performance. It is engineered to last, ensuring minimal need for maintenance and replacements.
