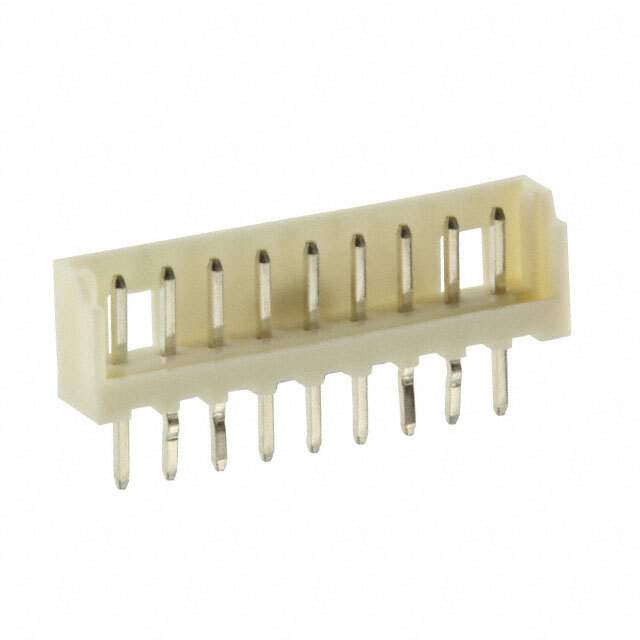

53253-0970 Real Image
Same model may have multiple batches, images only for reference.

53253-0970

Part No 53253-0970
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (3 Sides) HDR 9 POS 2mm Solder ST Thru-Hole Micro-Latch™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Male Pin
Contact Material Brass
Contact Mating Length 3.302 mm
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin VN
Current Rating 2 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Nylon
Lead Free Lead Free
Max Operating Temperature 105 °C
Max Voltage Rating (DC) 125.125 kV
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 9
Number of Contacts 9
Number of Positions 9
Number of Rows 1
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 125 V
Win Source Part Number 1193828-53253-0970
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 53253-0970 CAD Model

Description

The Molex, LLC 1193828-53253-0970 is a male pin connector with 9 positions and 1 row.

  • Pitch: 2mm
  • Contact Mating Length: 3.302mm
  • Contact Material: Brass
  • Housing Material: Nylon
  • Termination: Through-Hole
  • Contact Plating: Tin
  • Voltage Rating: 125V
  • Current Rating: 2A
  • Housing Color: Natural
  • Contact Resistance: 20mΩ
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 105°C
