Same model may have multiple batches, images only for reference.

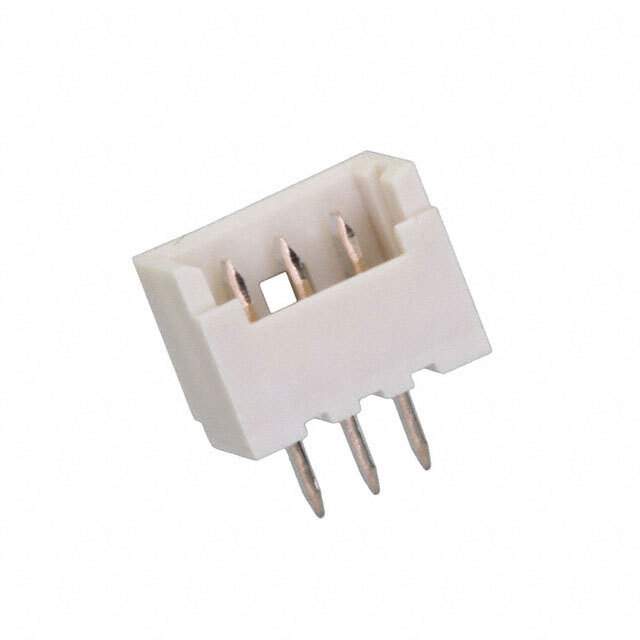

53047-0310 Real Image
Same model may have multiple batches, images only for reference.

53047-0310

Part No 53047-0310
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 3 Position 0.059 inch Inverted SMT Through Board Wire to Board Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Plating Tin
Color Natural
Contact Material Tin
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin TW
Current Rating 1 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 4.4 mm
Housing Color Natural
Housing Material Polyamide
Insulation Resistance 100 MΩ
Lead Free Yes
Lead Pitch 1.25 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 125 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 3
Number of Contacts 3
Number of Pins 3
Number of Poles 3
Number of Positions 3
Number of Rows 1
Orientation Vertical
Pitch 1.25 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Voltage Rating (AC) 125 V
Voltage Rating (DC) 125 V
Working Voltage 125 V
Win Source Part Number 985128-53047-0310
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53047-0310 CAD Model

Description

The Molex 985128-53047-0310 is a 3-position male connector that can be used in various electronic circuits.

  • Pitch: 1.25mm
  • Current Rating: 1A
  • Voltage Rating: 125V AC/DC
  • Mounting: Through-hole
  • Material: Polyamide
  • Temperature Range: -40°C to 85°C
  • RoHS Compliant: Yes
