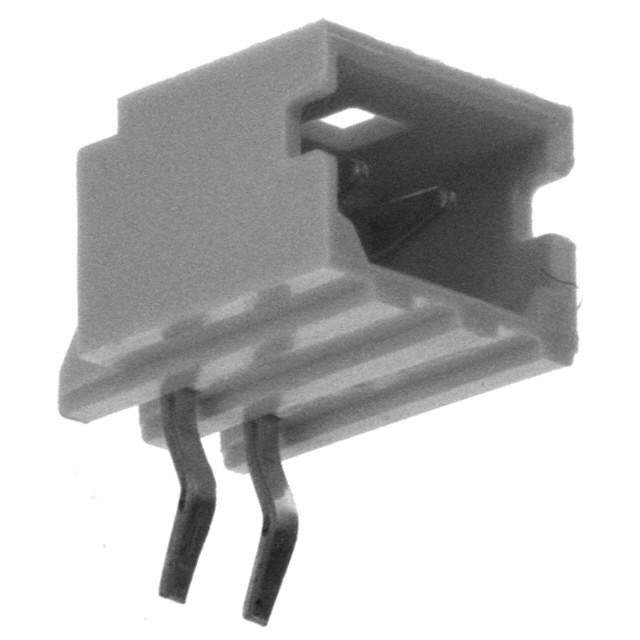

530150210 Real Image
Same model may have multiple batches, images only for reference.

530150210

Part No 530150210
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 2MM 2POS RT ANG TIN
Datasheet
530150210 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.122" (3.10mm)
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.183" (4.65mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35μin (0.90μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color White
Applications General Purpose, Telecommunications
Win Source Part Number 1006046-530150210
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 530150210 CAD Model

Description

The Header Connector from Molex LLC is a high-quality electronic component designed for use in a variety of applications, including general purpose and telecommunications.

  • Insulation Material: polyamide (PA66), nylon 6/6, and glass filled
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: tin, with a thickness of 35μin (0.90μm)
  • Fastening Type: detent lock
  • Shrouding: 4 walls
  • Rows: one row
  • Positions Loaded: 2
  • Termination: press-fit and solder
  • Voltage and Current Ratings: not specified
  • Insulation Color: white
  • Connector Type: board to cable/wire
  • Contact Shape: rectangular
  • Contact Length-Mating: 0.122" (3.10mm)
  • Supply and Demand Status: balanced
