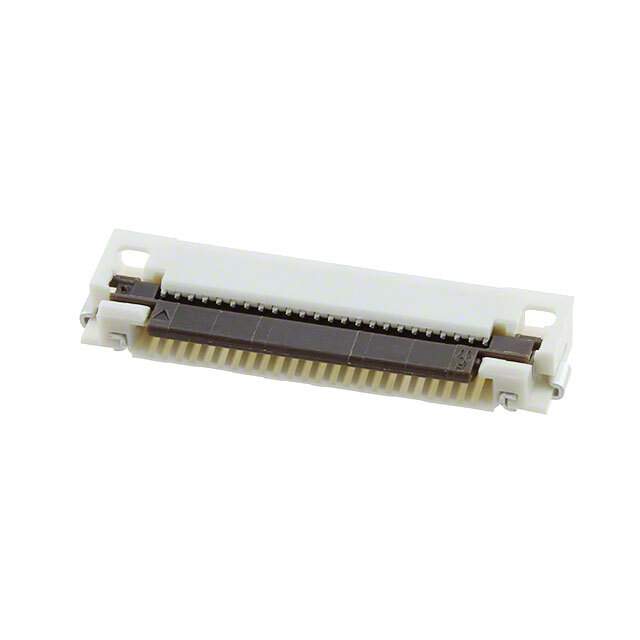

52892-2433 Real Image
Same model may have multiple batches, images only for reference.

52892-2433

Part No 52892-2433
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 24 POS 0.5mm Solder RA SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Silver, Tin
Country of Origin MY
Current Rating 500 mA
Housing Material Nylon
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Circuits 24
Number of Contacts 24
Number of Positions 24
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape (CT)
Pitch 500 µm
REACH SVHC No SVHC
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1039148-52892-2433
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52892-2433 CAD Model

Description

This Molex, LLC FFC/FPC connector with part number 1039148-52892-2433 is a 24 position, 1 row, right angle orientation connector with a pitch of 500 µm and termination type of solder.

  • Positions: 24
  • Rows: 1
  • Orientation: right angle
  • Pitch: 500 µm
  • Termination Type: solder
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • Contact Material: bronze
  • Housing Material: nylon
  • Contact Plating: silver and tin
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85 °C
  • Supply and Demand Status: shortage
