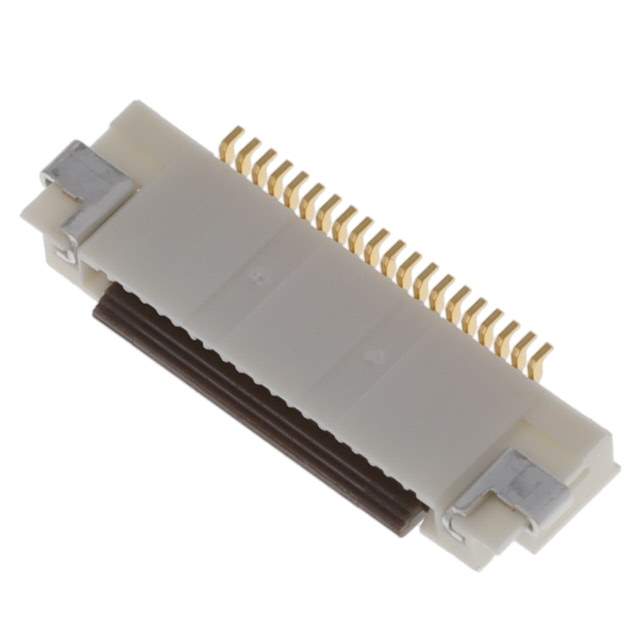

The Molex 52892-2096 is a 20-circuit, top contact FFC/FPC connector. It is a ZIF (Zero Insertion Force) connector with a fine pitch, designed for connecting flexible flat cables (FFC) or flexible printed circuits (FPC) to a printed circuit board (PCB). The top contact configuration simplifies cable insertion and removal.

Applications:

• LCD Displays: Interconnecting LCD panels with driver boards.
• Digital Cameras: Connecting image sensors and control boards.
• Mobile Phones: Connecting display screens, touch panels and camera modules.
• Portable Devices: Used in various handheld devices needing compact interconnect solutions.
• Medical Equipment: Integrating displays and control interfaces in medical devices.
• Automotive Systems: Connecting displays and sensors within vehicle dashboards.

Features:

• Top Contact: FFC/FPC cable insertion from the top for ease of use.
• Zero Insertion Force (ZIF): Requires minimal force to insert and remove the cable, preventing damage.
• Fine Pitch: Compact design allows for high-density connections.
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• Robust Actuator: Ensures secure cable retention and reliable electrical contact.

Benefits:

• Ease of Use: Top contact and ZIF design simplifies cable insertion and removal.
• High Reliability: Secure cable retention and robust construction ensure a reliable connection.
• Compact Design: Fine pitch allows for use in space-constrained applications.
• Cost-Effective: SMT design enables automated assembly, reducing manufacturing costs.
• Versatile: Suitable for a wide range of applications requiring flexible circuit connections.

Additional Details:

The 52892-2096 connector typically has a voltage rating of 50V and a current rating of 0.5A per contact. The operating temperature range is generally between -20°C to +85°C. The housing is often made of high-temperature thermoplastic, suitable for reflow soldering. The contacts are usually made of copper alloy with tin or gold plating to provide good conductivity and corrosion resistance. The actuator material is typically a durable plastic that can withstand repeated opening and closing. This connector conforms to RoHS compliance standards.

Designed for FFC/FPC cable thicknesses of approximately 0.3mm. The actuator provides a secure locking mechanism to prevent accidental disconnection. Available in tape-and-reel packaging for high-volume automated assembly.
