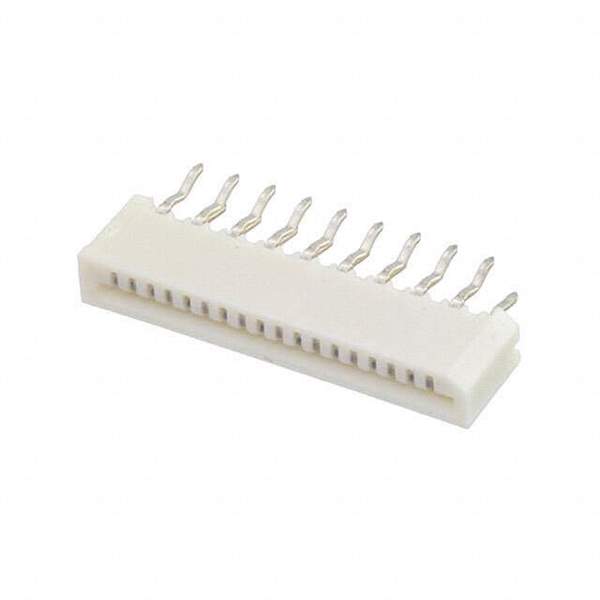

528061810 Real Image
Same model may have multiple batches, images only for reference.

528061810

Part No 528061810
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 18POS 1.00MM PCB
Datasheet
528061810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series 52806
Packaging Tray
Flat Flex Type FPC
Mounting Style Through Hole
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 18
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.213" (5.40mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS)
Voltage Rating 50V
Operating Temperature Range -20°C ~ 80°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Mating Cycles 10
Win Source Part Number 763955-528061810
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 528061810 CAD Model

Description

{"ProductId":702333,"FormattedDescription":"

The Molex 52806 series connector is a through-hole mounting style connector.

  • Positions: 18
  • Pitch: 1.00mm
  • Termination: Kinked Pin
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Housing Material: Polyphenylene Sulfide (PPS)
  • Flammability Rating: UL94 V-0
  • Height Above Board: 5.40mm
  • FPC Type: Flat Flex
  • Contacts: Vertical, One-sided
  • Cable End Type: Straight
  • Mating Cycle: 10
  • Applications: Connectors and Interconnects
"}
