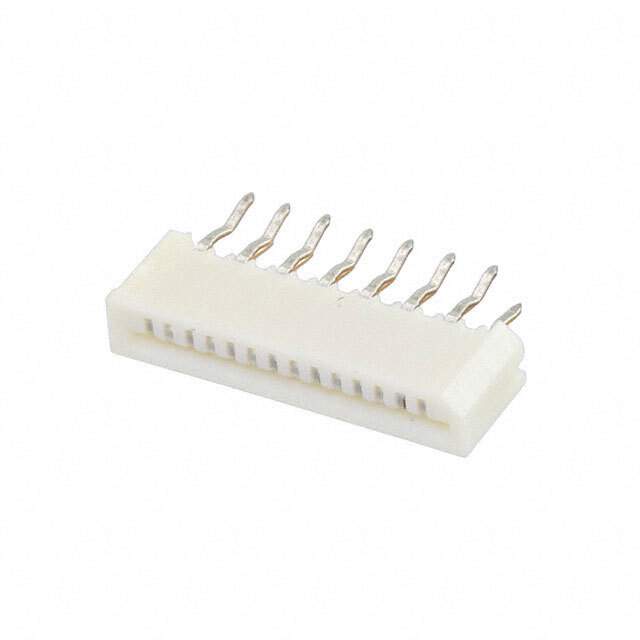

52806-1410 Real Image
Same model may have multiple batches, images only for reference.

52806-1410

Part No 52806-1410
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description .039 Pitch FFC/FPC Connector, Vertical, Non-ZIF, Kinked PC Tails, 14 Ccts
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Contact Resistance 30 mΩ
Country of Origin MY
Current Rating 500 mA
Depth 3 mm
Flammability Rating UL94 V-0
Housing Color Natural
Housing Material Polyphenylene
Length 17 mm
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -20 °C
Number of Circuits 14
Number of Contacts 14
Number of Positions 14
Number of Rows 1
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Wire/Cable Type Straight
Win Source Part Number 960333-52806-1410
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52806-1410 CAD Model

Description

The Molex, LLC 960333-52806-1410 is a 14-position, 1-row, vertical FFC/FPC connector.

  • Pitch: 2 mm
  • Current Rating: 500 mA
  • Housing Material: polyphenylene
  • Housing Color: natural
  • RoHS Directive: compliant
  • Maximum Operating Temperature: 80 °C
  • Supply and Demand Status: currently in shortage
